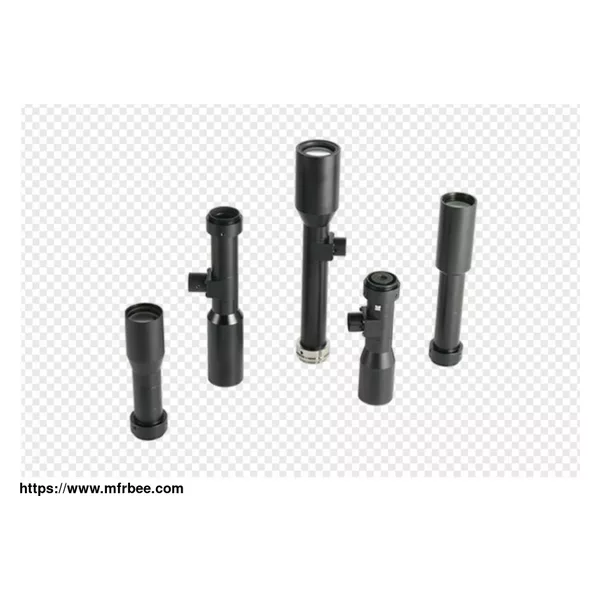

High Mag 1/2' Sensor Telecentric Long Working Distance Lens
- Packaging
- N/A
- Delivery
- N/A
Specifications
Standard resolution telecentric lens
Wide magnification range from 0.5X to 2X
Bi-telecentric design and object telecentric design
22 standard models of this double telecentric lens series support long telecentric lens working distance up to 300MM
Long telecentric lens working distance suitable for various applications, alignment, inspection, measurement, etc.
C mount
High Mag 1/2' Sensor Telecentric Long Working Distance Lens Specification
Model Optical Size Sensor Length (mm) Sensor Width (mm) Diagonal (mm) FOV Length (mm) FOV Width (mm) Lens Length (mm) Max Diameter (mm)
XF-T05X150 1/2' 6.4 4.8 8 12.8 9.6 104.4 29
XF-T05X150D 1/2' 6.4 4.8 8 12.8 9.6 107.5 29
XF-T05X200D 1/2' 6.4 4.8 8 12.8 9.6 91.9 29
XF-T05X200 1/2' 6.4 4.8 8 12.8 9.6 95 29
XF-T1X150 1/2' 6.4 4.8 8 6.4 4.8 140.2 22
XF-T1X150D 1/2' 6.4 4.8 8 6.4 4.8 143.3 22
XF-T1X250 1/2' 6.4 4.8 8 6.4 4.8 147.3 30
XF-T1X250D 1/2' 6.4 4.8 8 6.4 4.8 149.8 30
XF-T1X300 1/2' 6.4 4.8 8 6.4 4.8 220.7 30
XF-T1X300D 1/2' 6.4 4.8 8 6.4 4.8 223.2 30
XF-T1X420 1/3' 4.8 3.6 6 4.8 3.6 209.7 30
XF-T1X420D 1/3' 4.8 3.6 6 4.8 3.6 210.7 30
XF-T2X150B 1/2' 6.4 4.8 8 3.2 2.4 102.8 24
XF-T2X150BD 1/2' 6.4 4.8 8 3.2 2.4 102.8 24
XF-T2X200B 1/2' 6.4 4.8 8 3.2 2.4 122.6 26
XF-T2X200BD 1/2' 6.4 4.8 8 3.2 2.4 122.6 26
XF-T2X250 1/1.8' 7.2 5.3 9 3.6 2.7 189.1 30
XF-T2X250D 1/1.8' 7.2 5.3 9 3.6 2.7 191.7 30
XF-T2X300 1/2' 6.4 4.8 8 3.2 2.4 189.7 34
XF-T2X300D 1/2' 6.4 4.8 8 3.2 2.4 194.1 34
XF-MT1X200 2/3' 8.45 7.07 11 8.5 7.1 188.7 36
XF-MT1X200D 2/3' 8.45 7.07 11 8.5 7.1 191.9 36
As a china lens manufacturer, we can offer kinds of microscopy lens for sale, anything you need, please leave us a message.
