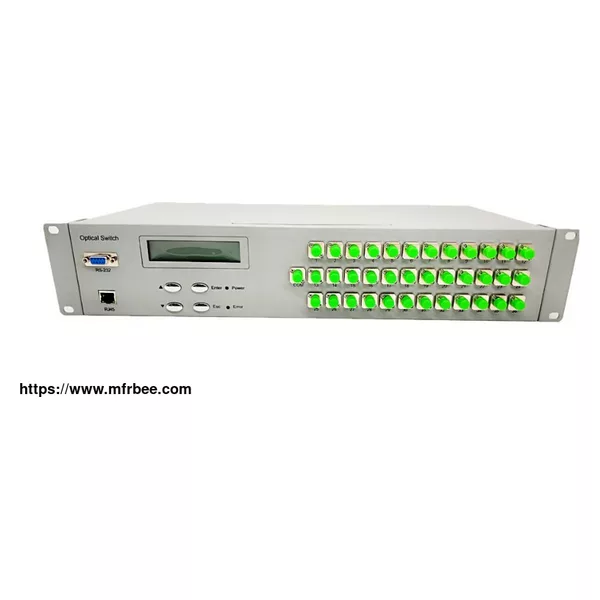

XH-FSW-1x36 rack-mounted optic switch is a kind of functional device,with the ability of controlling and switching optical route. It can be manually selected from front panel or controlled via RS232 port, Ethernet port and auto-scanned on certain frequency. In optical fiber transmission system, it is used for multi-channel fiber monitoring, multi light source/ detector selection, and optical fiber path protection etc. Besides, it is also used in optical fiber test system for optical fiber and its component test, outdoor cable test and multi-spot optical sensors monitoring system.

Features

Low insertion loss, Fast switching

SerialNet, High Reliability, High Stability

LCD display panel. Visual display, Convenient operation
Transparent transmission signal. High stability and reliability
Channel and time interval of automatic scanning can be set up

RS232 Control and RJ45 Ethernet Remote Management

Applications

FITL

Automatic Measurement

Optical Network Remote Monitoring

Cable Monitoring and Maintaining system

Parameters

Parameters	Unit	Indicators
Unit Type		XH- FSW-1X36
Wavelength Range	nm	1250~1700nm
Test Wavelength	nm	1550nm
Insertion Loss	dB	Typ. ≤0.8dB,Max.≤1.5 dB
Repeatability	dB	≤ 0.02
Return Loss	dB	≥ 50
Crosstalk	dB	≥ 70
WDL	dB	≤ 0.25
PDL	dB	≤ 0.05
Optical Power	mW	≤ 500
Switching Time	ms	12 ms(adjacent channel)
Fiber Type	um	9/125
Connector		LC/PC
Monitoring Port		RJ45 & RS-232
Working Power Supply (Plug-type)	V	AC:100~ 240 (50/60Hz)
Power Consumption	W
Operating Temperature	ºC	-10 ~ 60
Size	mm	3U:483 x 230 x 134
