Copper Knitted Mesh

KNITTED COPPER WIRE MESH AND TUBES FOR DEMISTER FILTERS

We supply knitted copper mesh in mesh rolls and tube forms, per technical specifications set by international standards. Our quality knitted copper mesh rolls and tubular copper mesh are exported to Turkey, USA, India and many other countries. Material test certificate is supplied with each lot.

Copper Knitted Mesh is one of the main components of wire mesh demister and other separation engineering filter parts for Gas Liquid Filtration. Flat copper mesh demisters serve well in deleting the particle mixture in foam, liquid and air, by way of distillating, absorbing, evaporating and filtering process. Forms of processing include tubes, tapes, gaskets and pads. This mesh filters are used in industries of petroleum, chemicals, metallurgy, machine, pharmaceuticals, automobile and environmental protection.

Major products:

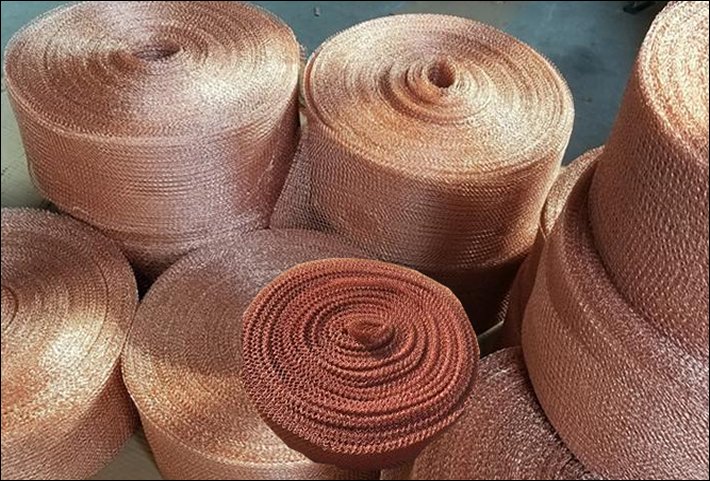

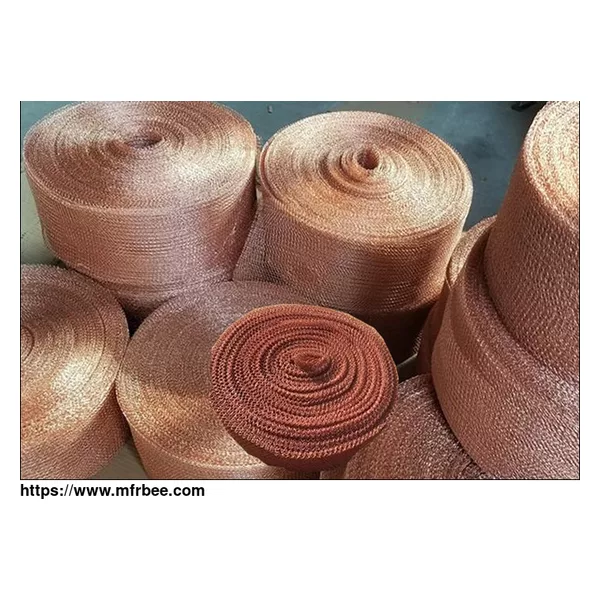

Knitted copper mesh ( Copper and alloy)
Tubular knit copper mesh ( Copper and Tin Plated Copper )

Application:

Knitted Copper Meshes are mainly used for demister filter pads and other processing:
Gas-liquid separation filter, gas water separation, oil-water separation equipment;
Various filters on the engine cars, tractors;
Automotive parts sealing, damping (shock), silencers and exhaust purification element;
Electronics, electrical products electromagnetic interference shielding;
Architectural decoration.

Satin Copper Mesh Netting, Technical specifications: Material: Copper, Aperture: 30 micron
Mesh knit pattern: Tricot knit / satin weave
Mesh opening: 30 holes per inch in both direction at nominally stretched condition.
Mesh size: 4 m x 4m

Knitted Pattern: As shown below

Satin weave pattern:

Copper Ultrafine Wire

Ultra fine knitted wire in copper

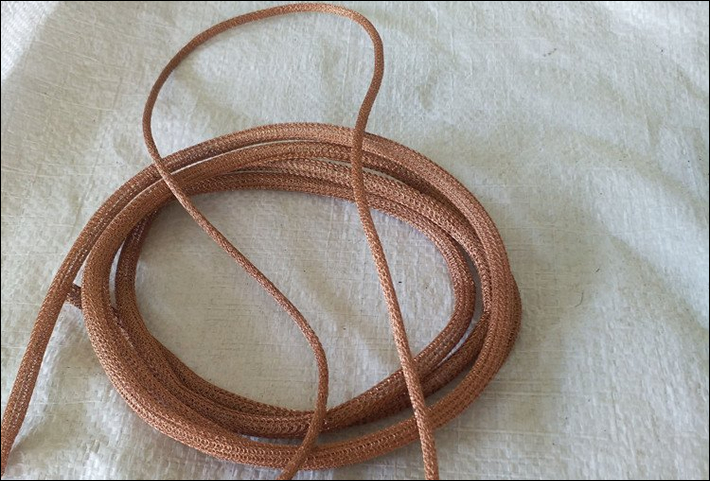

Copper Knit Wire Mesh Tubes Pressed Flat for Compressed Gaskets

Tubular Knitted Mesh Tape:

Wire Material: Tin copper wire 0.12 mm in width: 85 mm, 110 mm, 115 mm, 150 mm

Bare copper or tinned plated

Color: Red or white

Purity: Pure copper wire99.9%

Red Copper Mesh Sealing Parts of Annealed Flexible Copper Wire Loop Needle Structure

Tin Plated Copper Knit Mesh in Tube Form for Shielding Uses

Knitted copper mesh and other materials for liquid gas filtration, detail technical specifications in lists:

Wire diameter	0.04mm-0.50mm ( regular wire diameter from 0.20mm - 0.28mm), plus multi-strand twisted woven also is available.
Aperture	From (23mm) to (4 5mm) and then to (12* 6mm). Custom hole size available upon requirements. Openings form a large hole and hole cross arrangement (hole dimensions in the longitudinal direction is the same, not the same width)
Surface Conditions of knitted wire mesh	Flat-type mesh and pressed into corrugated mesh (width and depth of the corrugations have different specifications).
The width of the knitted wire mesh	40mm, 80mm, 100mm, 150mm, 200mm, 300mm, 400, 500mm, 600mm and so on
Materials	Stainless steel wire, copper wire, brass wire, phosphor bronze wire, galvanized wire, nickel wire, monel 400 wire, titanium wire, etc

Standard Type, High Efficiency and Damping Types:

Types Gas Liquid Filter: Standard Type

Model	40-100	60-150	140-400
Wire size	diameter: 0.23, 0.1*0.4mm

High Efficiency Type(wrong) High penetration type

Model	20-100	30-150	70-400
Wire size	diameter: 0.230.1*0.4mm

Model	60-100	80-150	200-400	80-100	90-150
Wire size	diameter: 0.19, 0.1*0.28MM	diameter: 0.12, 0.1*0.3mm

Shock Type/damping Knitted Wire Mesh

Model	20-40	30-80	40-120	50-120
Wire size	diameter: 0.21mm

Tinned Pure Copper Knitted Mesh

Material: tinned pure copper
Knitted Mesh Width 60mm: two wires, wire diam 0.15mm, one layer,
Knitted Mesh Width 100mm: four wires, wire diam 0.10mm, one layer,
Also, there is another request for flexible tinned copper braids.

Company: Hebei Drahtgeflecht Knitted Mesh Co., Ltd.
Country: China (Mainland)
Business Type: Dezhou Hengda Perforated Metal Factory
Market: Africa,Americas,Asia,Emerging Markets,Europe,European Union,G20,Middle East,Oceania
Founded Year: 2004
Address: 18 Xinyue Street,shijiazhuang,hebei, China
Contact: Shuiliu Zhou
