STAINLESS STEEL KNITTED WIRE MESH FOR FILTER AND SHIELDING FABRICS (SS 304, 316L, 309, 430, ETC)

Knit Wire Netting can be supplied in various stainless steel grades of flat crimped wire: 316SS, SS304

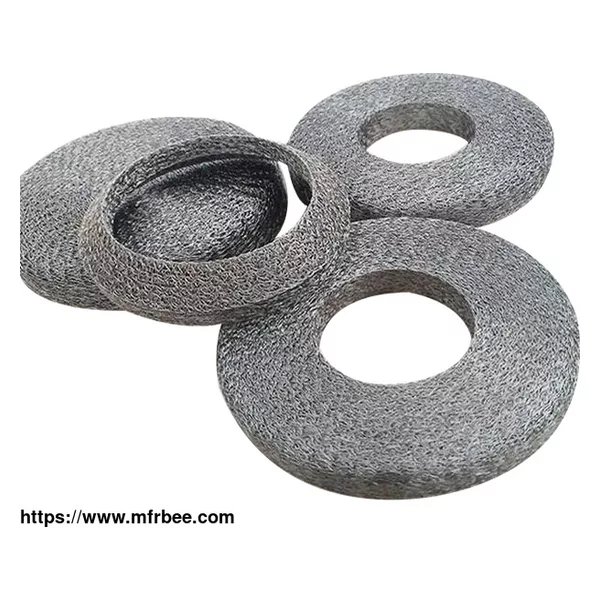

The ss wire screen is primary filter material for fabricating of gaskets, demisters, eliminators, breathers, mufflers, isolators and other kinds of liquid gas separator filters. Various forms of supply include cylinder, round disc, ring, oval, rectangular and circular pad, and special shapes. 304 stainless steel knitted wire mesh of SWG Gauge 36 is popular for USA Market.

SS 304 Knitted Wire Mesh Rolls: Material for making demister pad

Material: 304 stainless steel
Wire Diameter: 0.274 mm
Width: 550 mm 570 mm wide
Width: 450 mm wide +/- 10 mm
Width: 350 mm wide +/- 10 mm
Width: 300 mm wide +/- 10 mm
Wire Diameter: 0.20 mm
Hole mesh 6/inch or 50-60 hole mesh per feet
Size: 30 m x 1.2m x 0.2mm

S. S 304 Monofilament Wire Knitted and Crimped: for Single Piece Pad Filter Material

MOC SS304 Wire 0.274 mm Knit Mesh for Breathers Filtration Material in Auto Filter System

Specification:

This monofilament wire 304 mesh is demister material. Suitable for making of demister pads of following sizes:

Demister Size and weight: 2'x4'x100mm thickness
Material: 304 Stainless Steel
Bulk Density: 144kg/m3
Demister pad will be made up of Monofilament wire (0.28mm dia) duly knitted and crimped
Demister form: Single piece pad
Pad will be suitably oversized to ensure a snug fit inside the wheel

AISI 304 Wire Mesh Continous Knitted, 6 Meshes for Circular Mist Eliminator

Material : AISI 304 wire mesh
Type: Continuous knitted type, 6 meshes per linear inch
Wire Diameter:
SWG36 (wire dia 0.193mm);
SWG30 (Wire dia 0.315mm)
Packing: In bundles. 100mm width rolled into a cylinder of weight appx. 2.5 to 5kgs

SS316 Finely Knitted Wire Mesh Shielding Fabric

As a enclosure over Removable Hot Insulation Jacket Covers over Pipelines Valve Boxes, Flanges etc in the Oil & Gas projects.
Width can be 1000 mm or 1220 mm
Length supplied in lengths of 50 mtrs in roll form
For United Arab Emirates
Wire Diameter: 0.274 mm and other sizes

316SS Knitted Wire Mesh for Heat Shield Isolators

Compared with 304 mesh

Knit mesh isolators material: Stainless steel knitted wire mesh
SS grade: 316 Stainless
Form: Isolator bobbins to fit inside spring mounts
Size:
48mm long
36mm out diameter
12mm hole
Knit wire diameter 0.16mm
Weight: 32 - 35g

Knitted Crimped Monofilament Wire

Wire Mesh Knitted Mono-Filament
SS 316 Mesh
Opening 4x7
No Of Stitches Per CM On Lengh: 3
No of Stitches Per CM Across Lay Flat: 2
Wire Dia 0.010 Inch, 72 inch.

Engineering Wire Mesh Knitted 309, Materials for Mesh Gasket

Material: Stainless steel SS309
Wire Diameter: 0.20mm
Hole Dimension: Size hole mesh 6 / inch or 50 -60 hole mesh per feet
Size: 30m x 1.2 m x 0.2mm

Standard Type Knitted mesh of 6-12 Stitches, Engine Breather

Material: Stainless Steel AISI304, 316, 321, 430
Wire Dia.: 0.25mm -0.28mm
Stitches: Number of stitches horizontally and vertically on the length of 50 mm =6-12 stitches.
Web netting width should be not less than 1000mm.

Inconel and SS Knitted Wire Mesh Fabrics for Steam Vapor Removing

Also supply:

201 202 304 304L 316L 321 410 430 stainless steel knitted wire mesh, Teflon Knitted Mesh, Monel Knitted Mesh Filter and Inconel Wire Mesh.

Knitted mesh is also used in manufacture of the following filter products:

Electronic system shielding;
Compressed tubes and tapes

You may want to learn more about: Knitted Mesh Structure
