Metric Thread Brass Cable Gland

Place Of Origin: China

Minimum Order: 1000

Packaging: 50 pcs per bag

Delivery: 7 Days

Our metal cable glands are made of high-quality brass nickel-plated materials, with complete sizes, it can match a variety of thread specifications.

As one of cable gland manufacturers, SAICHUANG provides high- quality brass cable gland that has good sealing performance, strong and durable characteristics. They can be used in a different environments.

Metric Thread Brass Cable Gland Specifications

Product Metric thread brass cable gland

Category Brass Cable Gland

Thread Metric Thread

Connector Type Installable Straight

Locking System/ Mating Style Screw

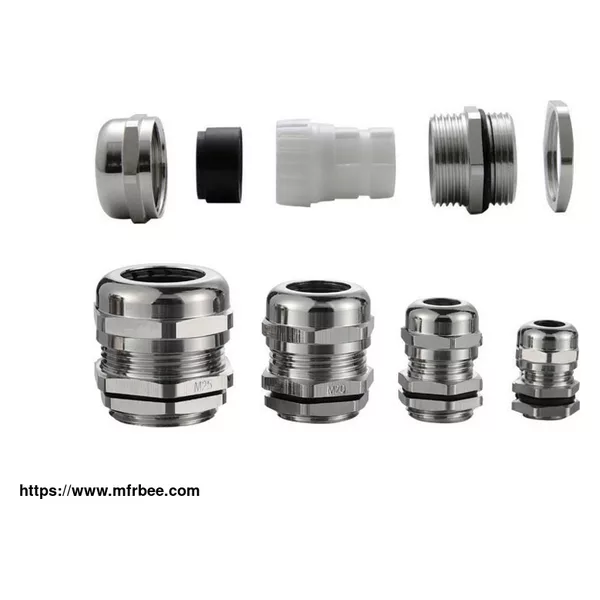

Material Sealing nut, body and lock nut are made of nickel plated brass, the claw is made of PA and the seal and washer are made of nitrile butadiene rubber (NBR).

Working termperature: -40 to 100 centigrade in static state,instantaneous heat resistance up to 120 centigrade,-20 to 80 centigrade in dynamic state,instantaneous heat resistance up to 100 centigrade.

Characteristics Special design of clamping die and rubber part,large range in clamping cable, ultra-strong stretching resistance, waterproof, dustproof,and high ability to resist salt,acid,alkali, alcohol,grease and general solvent.

IP Rating IPX7

Additional Description With washer and lock nut

Metric Thread Brass Cable Gland Parameters and Drawing

Model Thread specification Range (mm) Thread O .D . AG(mm) Thread Length GL (mm) Joint length H (mm) Spanner Size (mm)

SC-M8 M8xl 2-5 8 5 16 12

SC-M10 MlOxl 3-6.5 10 6.5 19 14

SC-M12 M12xl,5 3-6.5 12 6.5 19 14

SC-M12-8 4-8 12 8 19 17

SC-M14 M14xl,5 4-8 14 8 19 17

SC-M16 M16xl.5 4-8 16 8 20 18

SC-M16-10 5-10 16 8 21 20

SC-M18 M18 x 1.5 5-10 18 8 21 20

SC-M18-12 6-12 18 8 22 22

SC-M20 M20xl.5 6-12 20 8 22 22

SC-M22-14 10-14 20 8 23 24

SC-M22 M22 x 1.5 10-14 22 8 23 24

SC-M24 M24xl.5 10-14 24 9 25 24/27

SC-M25-14 M25xl.5 10-14 25 9 25 24/27

SC-M25-16 12-16 25 9 27 27

SC-M25-18 13-18 25 9 27 30/27

SC-M27 M27xl.5 13-18 27 9 27 30

SC-M28 M28 x 1.5 13-18 28 9 27 30

SC-M30 M30xl.5 13-18 30 9 29 30/32

SC-M32 M32xl.5 15-22 32 10 29 35

SC-M32-25 18-25 32 10 31 40

SC-M33 M33xl.5 15-22 33 10 29 35

SC-M36 M36xl.5 18-25 36 10 31 40

SC-M37 M37xl.5 18-25 37 10 31 40

SC-M40-25 M40xl.5 18-25 40 11 31 40/45

SC-M40-30 22-30 40 11 35 45

SC-M42 M42 x 1.5 22-30 42 11 35 45

SC-M47 M47xl.5 25-33 47 11 37 50

SC-M48 M48 x 1.5 25-33 48 11 37 50/52

SC-M50 M50xl.5 32-38 50 13 37 57/55

SC-M54 M54xl.5 32-38 54 13 38 57

SC-M60 M60xl.5 37-44 60 14 38 64

SC-M63 M63xl.5 37-44 63 14 38 64/68

SC-M64 M64x2 37-44 64 14 38 64/68

SC-M72 M72x2 42-52 72 16 42 78

SC-M72-58 48-58 72 16 42 78

SC-M75 M75x2 42-52 75 16 42 78/80

SC-M80 M80x2 55-62 80 18 45 88

SC-M88 M88x2 65-70 88 18 45 94

SC-M100 M100x2 78-84 100 20 53 110

As a professional cable gland supplier, we provide nickel plated brass gland, cable gland nickel plated brass, brass nickel plated cable gland, nickel plated brass cable glands, nickel plated brass cable gland, electrical ties plastic and etc. Want to know more? Please contact us.
