Achromatic Lens

An achromatic lens is a lens that is designed to limit the effects of chromatic and spherical aberration. Achromatic doublet lenses have significantly better optical performance than singlet lenses in visible imaging and laser beam manipulation applications. We provide custom achromatic lens consisting of two elements, usually of a positive low-index crown glass cemented to a negative high-index flint glass that have been corrected for chromatic aberration with respect to two or more selected wavelengths.

Specification of achromatic lens for sale

Material BK7 Grade A Optical Glass

Design Wavelength 480.0nm, 546.1nm, 643.8 nm

Diameter Tolerance +0.0, -0.15 mm

Thickness Tolerance ±0.2 mm

Paraxial Focal Length ±2% @546.1 nm

Centration <3 arc Minutes

Clear Aperture >85%

Surface Irregularity λ/4@632.8 nm

Surface Quality 60-40 Scratch And Dig

Protective Bevel 0.25 mm x 45°

Achromatic Lens Capacity

Material Optical Glass.

Diameter 0.5 to 350 mm

Diameter Tolerance +0/-0.02 mm

Thickness Tolerance ±0.01 mm

Surface Quality 10-5

Surface Figure λ/10

Centration 1 Minute or 30 Second

Coating Uncoated, AR and HR

Positive Achromatic Lens Standard Products

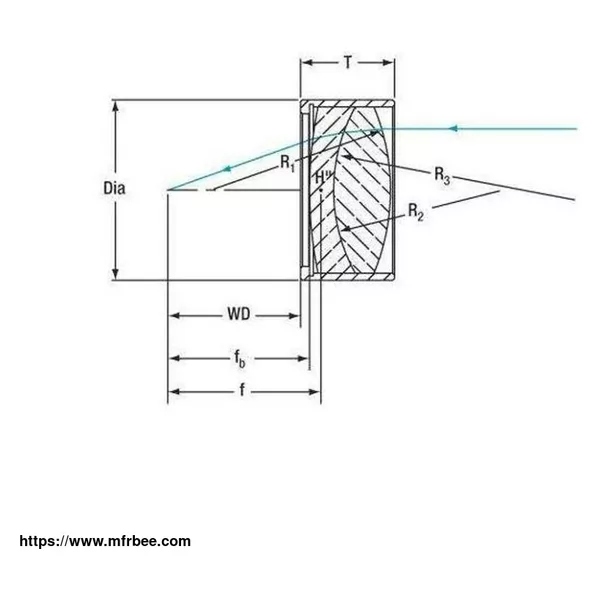

Part No. f (mm) Ф (mm) R1 (mm) R2=R3 (mm) R4 (mm) tc1

(mm) t c2

(mm) f b

(mm) Lens A Lens B

TPA101 10.0 6.0 6.546 -4.055 -23.23 3.6 0.8 7.54 SK9 SF15

TPA102 20.0 10.0 12.32 -0.902 -25.23 3.8 1.0 17.625 BK7 SF5

TPA103 30.0 12.7 18.535 -13.49 -37.84 4.0 1.3 27.36 BK7 SF5

TPA104 40.0 12.7 25.23 -17.539 -48.75 3.4 1.3 37.778 BK7 SF5

TPA105 50.0 18.0 31.69 -22.0 -60.57 4.8 1.5 46.987 BK7 SF5

Negative Achromatic Lens Standard Products

Part No. f (mm) Ф (mm) R1 (mm) R2=R3 (mm) R4 (mm) tc1

(mm) t c2

(mm) f b

(mm) Lens A Lens B

TNA101 -25 12.7 -15.6 13.09 44.16 3.0 2.67 -27.5 BK7 F2

TNA102 -40 12.7 -24.45 17.97 66.6 3.0 2.34 -42.5 BK7 F2

As one of the achromatic lens suppliers, we provide optical component, achromatic convex lens, negative achromatic lens, achromatic coated lens, precision optical design and etc. Want to know achromatic lens uses or more.
