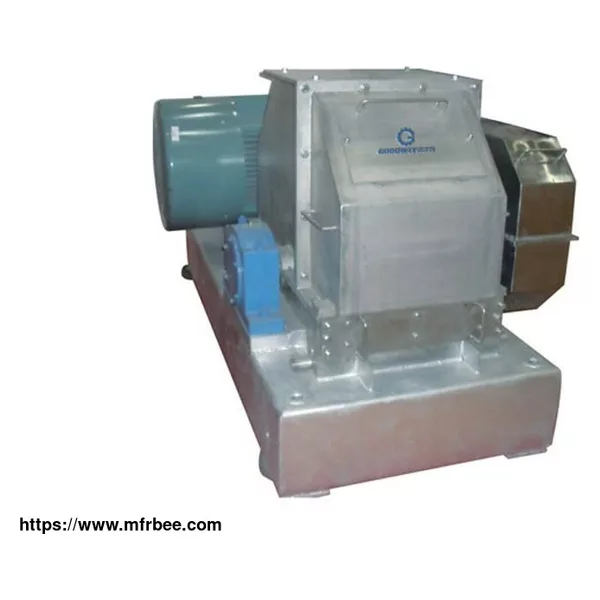

Cassava Starch Extraction Machine

FOB Price: USD $200,000.00 / Piece
Place Of Origin: NanYang

Minimum Order: 1

Packaging: Standard export wood box

Delivery: 30-60days

Features of Cassava Starch Extraction Machine

Processing Capacity: 15-35Tons/hour

Application Scope: Crushing the cassava into the slurry

Product Introduction: Cassava rasper machine, rasper crusher, cassava crusher machine, cassava crushing machine for cassava starch and cassava flour processing

1. All parts in contact with raw material are made of food-grade stainless steel, which protects materials from outer pollution.

2. High rotating speed, high line speed, excellent rasping performance, uniform particle, and high starch ionization rate.

3. The rotor is calibrated with the international advanced dynamic-balance instrument, meeting the G1 standard.

4. Components(bearings for example) are imported from Europe with longer service life.

5. Unique sieve-tension gear makes disassembly easy.

6. Saw Blade is manufactured with special steel by the special process, with higher hardness and wear resistance.

7. Rasping bulk is cast of high-chromium iron, hardness reaching HRC60, having excellent wear resistance.

8. Unique drum groove and layering instrument design benefits saw blade changing.

Product Structure of Cassava Starch Extraction Machine

The complete machine consists of a rotor, rasping blade, engine base, upper cover, side cover, bearing base, gearing, motor, etc.

1. Engine base props up all components, which rotor and bearings are all fixed on.

2. The rotor is made of special stainless steel, uniform grooves on the surface to install saw blade.

3. Saw blade is comprised of 2 stainless-steel layer with locating pin and a saw blade.

4. 2 combined rasping blade is equipped on both sides of the rotor, which could achieve rotor two-way rotating and crests higher crushing rate.

5. A sieve is equipped between rasping blades, which is tensioned by two sets of tensioning instruments.

6. For easy operation, upper shell divides into two parts, upper cover, and side cover.

7. Use Sweden SKF Bearings and German opittle belt.

8. The motor drives rotor by the belt, which is protected by the sealed protective cover.

Technical Parameters of Cassava Starch Extraction Machine

Model No. GD-CM-300 GD-CM-400 GD-CM-500

Rotating Speed(r/min) 2100 2100 2100

Rotor Width(mm) 300 400 500

Motor Power(kW) 90~110 132~160 160~200

Capacity(t/h) 15~18 20~25 30~35

Weight(kg) 2500 2700 3500

Dimension(mm) 2200×1000×1200 2200×1200×1200 2200×1300×1200

Want to know how to extraction of starch from cassava and starch extraction methods, contact us.
