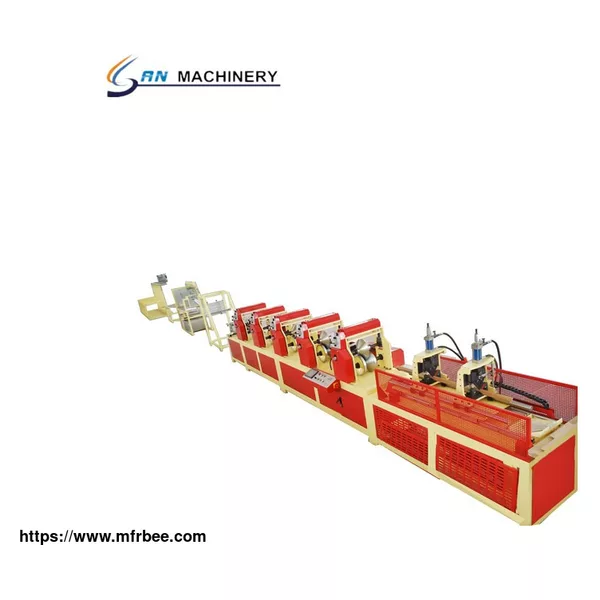

Paper Edge Protector Machine

FOB Price: USD $10,000.00 / Piece
Place Of Origin: Qingdao

Minimum Order: 20

Packaging: Wooden case

Delivery: 60 days

This type of paper edge board machine mainly produces paper edge protectors of various shapes and fully automated production process and quickly. Easy to operate, reduce the human cost and greatly reduce the cost of materials by using paper edge board machine.

Types of Paper Edge Protector Machine

CE Approved High Speed Paper Edge Protector Machine

Model: SANPPL-120G L protector size: 25-100mm (can be symmetrical and asymmetrical) Thickness: 2-10mm Core diameter of paper: roll 3” (76mm) (4” or other size possible)

Normal Speed Paper Angle Protector Machine

Paper protector production speed: 0~45m/min Size of paper protector: 30~100mm Thickness: 2~8mm Quantity of layer: 13 layers Cutting mode: driven by servo motor Cutter number: single blade

Double-Purpose Paper Edge Protector Machine

Model: SANPPL-120DL Paper protector production speed: 0~30m/min Size of paper protector: 30~100mm Thickness: 2~8mm Quantity of layer: 13 layers (including 1 layer surface paper)

Three-Purpose Paper Angle Board Machine

Model: SANPPL-120DLU, SANPPL-120DLF Paper protector production speed: 0~30m/min Size of paper protector: 30~100mm Thickness: 2~8mm Quantity of layer: 13 layers (including 1 layer surface paper) Cutting mode: driven by servo motor

Advantages of Paper Edge Protector Machine

Automatic alarm and malfunction prompt make it easy to adjust and maintain.

The operation is more humanized.

Industry-leading production technology.

Features of Paper Edge Protector Machine

Suspended paper stand with buffering effect, replace the paper rolls with hoist, there is no necessity to stop the paper edge protector machine while replacing.

Automatic glue temperature controller ensures the consistencies of paper edge protector machine quality and production speed in different environment condition. There is a heating system for production line, makes the protectors stronger.

Forming wheels with box-type suspended structure make paper edge protector machine easy to change molds.

With touch screen and human-machine interface of servo system, the operation is more humanized, therefore paper edge protector machine is more convenient to adjust the air cylinder.

Hydraulic cutting system, the maximum frequency can reach 90 times/minute.

Automatic stacking system with counter, no need manual counting.

Applications of Paper Edge Protector Machine

Paper Edge Protector Machine are also referred to as corner protectors, v boards, corner guards, and V profiles.

Paper edge protector products are built to the industry’s highest standards of quality and consistency, providing you with dependable protection along with load containment, stabilization and weight distribution.

Paper Edge Protector Machine are ideal when banding or strapping heavy loads.

Lightweight and heavy-duty paper edge protectors help provide additional column strength and provide load stabilization.

Paper Edge Protector Machine are available in full pallet and partial pallet quantities.

Improves safety and prevents load from shifting in transit.

Allows for bulky products to be easily unitized improving productivity by reducing pallet packing and unpacking time.

Increases vertical strength for multi-pallet stacking to reduce transportation costs.

Avoids costly damage to products during transportation and storage.

San Machinery is a professional paper honeycomb manufacturer, we provide paper core cutting machines, honeycomb making machine, edge board machine, corner board machine for sale and etc. If you are interested in our products, please feel free to contact us.
