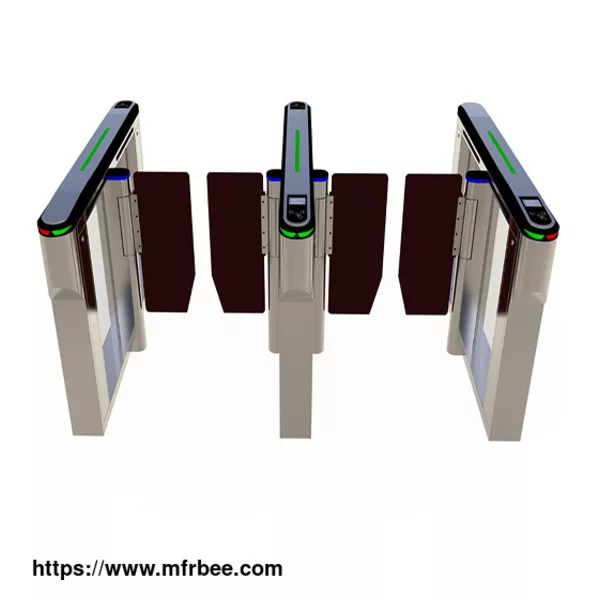

Access Control System Speed Gate Turnstile JDSG-27

Place Of Origin
China (Mainland)
Unit Price
1800 ~2600
Minimum Order
2
Packaging
1 peice per carton
Delivery
7 Days
Featurers

1.Intuitive approach detection
2. Slim tapered housing with ergonomic design and small footprint
3. Precision controlled tempered glass obstacles
4. In case of emergency the obstacles can be unlocked with a simple push to automatically open
5. Electro-mechanical locking to withstand forced entry attempts
6. Silent and smooth in operation
7. Stylish and flexible design able to virtually blend infinite aesthetics within architectural interior needs
8. Wider passages and higher obstacles
9. Glass obstacles up to 1800mm without or with straight or sloping overhang
10. Intelligent user guidance

Applications
Upscale corporate lobbies,
High rise building entrances
Luxury apartment complexes
Universities
Commercial office buildings
Government agencies

Parameters

Housing Material 1.5mm~2.0mm #304 stainless sheet
Dimension 1400 x 160 x 980mm
Power Supply AC220V / AC110V, 50/ 60 Hz
Channel Width 600~900mm
Drive Motor DC 24V brushless motor or servo motor
Pass Speed 35 ~45 persons per minute
Input Interface Dry contact signal or +12V level signal or DC12V pulse signal
Rotating Direction Bi-directional
Communication interface RS485
Gate open when power failure Yes
Open Time 0.2 second
Life Cycle 5 million times
Working Temperature -30°C~+70°C
Working Environments Indoor, outdoor (with shelter)

Access Control System Speed Gate Turnstile Design

Access Control SystemSpeed Gate Turnstile

Project Cases for Access Control System Speed Gate Turnstile

What is an access control system speed gate turnstile?
Access control system speed gate turnstile,an upgraded touchless turnstile, is a security turnstile or handicap turnstile which provides contactless operation, using optical beam detection and motorized opening/closing to fully automate the entry process. With motorized barriers, the access control turnstiles do not need user to contact when opening and closing. Integrated with temperature check, facial recognition, proximity scanners, or other access control solutions, they can achieve fully touchless functionality.

How does access control system speed gate turnstile work?
Access control system speed gate turnstile, as a touchless turnstile, functions by fixing in pairs, by which it is important to choose the right number of these turnstiles for specific projects. Meanwhile, considering the quantity for pedestrian traffic and for access for the disabled is also very important. Take speed turnstile JDSG-27 as example, which include single-wing type and dual-wing type. 2 single-wing type are required for a single-lane pass, and a 2-lane passage includes 2 singe-wing type JDSG-27 fixed on each side of a dual-wing type JDSG-27. In addition, most of our touchless turnstiles provide wide lane up to 900mm width for disabled access.

Can access control system speed gate turnstile be integrated with 3rd party access control systems ?
Off course, access control system speed gate turnstile is comptiable with a wide variety of access control systems by dry contact. Card pass, fingerprint / handprint reader, face recognition, barcode reader, thermal camera and token applications can integrate with such access control turnstiles.

What will happen when power off and in emergency situation?
Access control system speed gate turnstile instantly automatically unlocks for free passage under emergency situations (power outages, fire, etc)

Can access control system speed gate turnstile be used indoor and outdoor?
Off course, access control system speed gate turnstile is made for indoor or outdoor situations. For all Outdoor applications, we use 304 stainless steel to prevent corrosion.

Does access control system speed gate turnstile give access to ADA pedestrians?
Yes, access control system speed gate turnstile provides wide lane up to 900mm for the disabilities to allow for wheelchairs.
