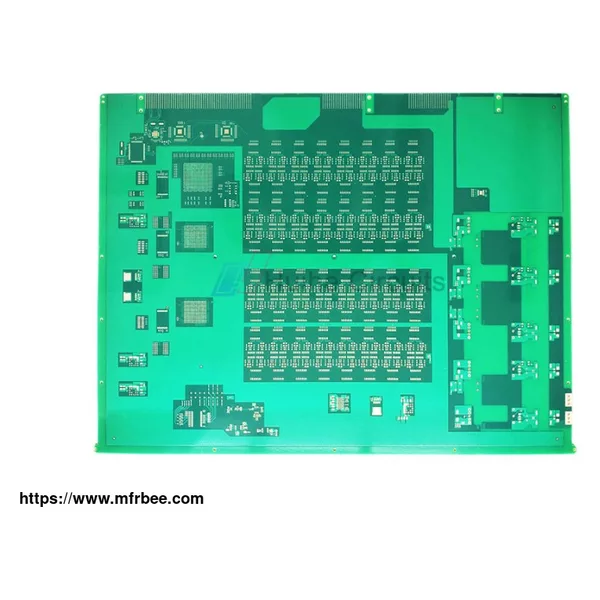

16 Layer ENIG Press Fit Hole PCB

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

Number of layers: 16

Surface finish: ENIG

Base material: FR4

Thickness: 3.0mm

Min. hole diameter:0.35mm

size：420×560mm

Outer Layer W/S: 4/3mil

Inner layer W/S: 5/4mil

Aspect Ratio: 9:1

Special process: via-in-pad Impedance Control Press Fit Hole

Advantages Of 16 Layer ENIG Press Fit Hole Pth PCB Board

Own lamination process to convenient production for Multilayer PCB and shorten the lead time.

Jiangxi facility is environmental-friendly approved by the government .

Famous raw materials brand, Kingboard, Shengyi, ITEQ, Taiyo, Guangxin.

Highly automated production line with AIO Optical Scanning, Electroplating Automatic Line, High-speed flying probe test machines and inkjet printer.

Engineers with more than 15 years of experience

Perfect quality inspection system

Professional R&D team can make all kinds of special boards.

Quick turn, prototype, medium or large batches can be produced to meet the needs of different customers.

Sales office in Shenzhen and own 12,000sqm factory in Jiangxi.

Establish an e-commerce system to reduce transaction costs and increase market response speed.

As a 16 layer pcb manufacturer, we can offer types of 16 layer pcb for sale, if you are interested, please contact us.

There are many printed circuit board manufacturers in China, but we are one of the best choices for sale, if you have needs, please contact us.

If you want to know more different types of pcb board, please visit our website.

Country: China (Mainland)
Business Type: Manufacturer
Market:
Founded Year:2017
Address:Building 2, Xinda Park, Lvyuan Road, Xinfeng County, Ganzhou 341600, Jiangxi
Contact:Huihe Circuits
