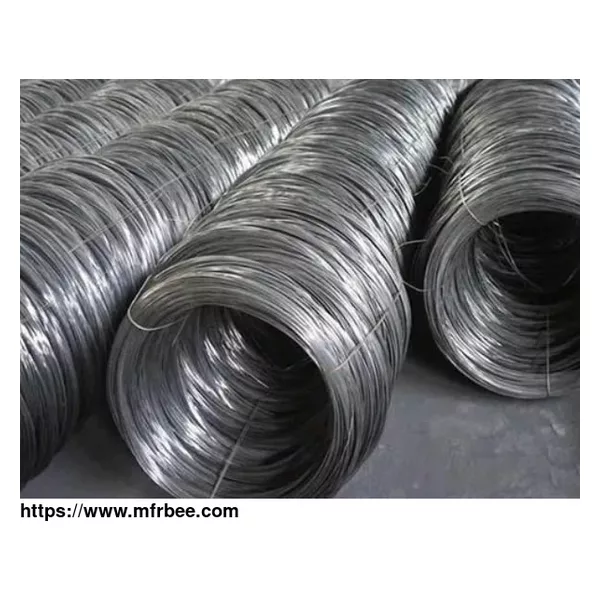

Bright spring wire includes stainless, low carbon steel wire and high carbon steel wire with a bright polished finish made through a cold-drawn process, featuring increased tensile strength.
We supply bright spring wire in coils, reels and spools, conforming to ASTM A510 and ASTM A853.
Bright Finish High Carbon Steel Wire
No: | Size | T/S/Nmm2 | Coil Weight | Coil Dia |
1 | 0.32mm | 2300 - 2600 | 30 KG | 250mm |
2 | 0.40mm | 2260 - 2550 | 30 KG | 250mm |
3 | 0.45mm | 2210 - 2600 | 30 - 35 KG | 250mm |
4 | 0.50mm | 2210 - 2500 | 30 - 35 KG | 250mm |
5 | 0.55mm | 2160 - 2600 | 30 - 35 KG | 250mm |
6 | 0.60mm | 2110 - 2400 | 30 - 35 KG | 250mm |
7 | 0.70mm | 2060 - 2400 | 65 - 70 KG | 350mm |
8 | 0.80mm | 2010 - 2300 | 65 - 70 KG | 350mm |
9 | 0.90mm | 2010 - 2260 | 65 - 70 KG | 350mm |
10 | 1.00mm | 1960 - 2210 | 65 - 70 KG | 350mm |
11 | 1.20mm | 1910 - 2160 | 65 - 70 KG | 350mm |
12 | 1.40mm | 1860 - 2110 | 70 - 75 KG | 350mm |
13 | 1.60mm | 1810 - 2060 | 100KG | 560mm |
14 | 2.00mm | 1720 - 1960 | 150 KG | 560mm |
15 | 2.25mm | 1670 - 1910 | 150 KG | 560mm |
16 | 2.30mm | 1670 - 1910 | 150 KG | 560mm |
17 | 2.60mm | 1670 - 1910 | 150 KG | 560mm |
18 | 2.90mm | 1620 - 1860 | 150 KG | 560mm |
19 | 2.96mm | 1620 - 1860 | 150 KG | 560mm |
20 | 4.47mm | 1520 - 1720 | 300 KG | 750mm |
21 | 8.00mm | 1370 - 1570 | 500 KG | 1200mm |
22 | 9.3mm | 1320 - 1520 | 500 KG | 1200mm |
23 | 11mm | 1270 - 1470 | 700 KG | 1200mm |
Welding Wire
CO2 ( Continued ) AWS ER 70 S 6
Size 1.00 MM
Packing: 15 KG on Plastic Reel
Bright Springs Steel Wire For Mattress
Standard: DIN 17223 β 84 / GRADE A
Size 1.40 mm
Torsion custom springs are widely used in wire spring hose clamps. Atals metal are able to supply from 0.1mm mini clamp spring to 10mm muti coiled spring. Specifications of Spring Clamps Specification Wire diameters from0.1mmTo 10 mm Springtype Campression spring, Extension ...
Welcome to visit our website www.oriking.com Steel wire/ spring wire/ high carbon steel wire/mattress spring wire Use for making compression spring, extension spring, torsion spring, bed mattress spring, flat control cable, etc. Diameter: 0.30mm-12.0mm Wire Rod Material: 45#, ...
Welcome to visit our website www.oriking.com Carbon steel spring wire Specifications: 1) Material: 60#, 70#, 75#, 72A, 72B, 82B, 65Mn 2) Diameter range: 0.14-13. 0mm 3) Standard: GB4357-89, DIN17223 4)Size:customer\'s design is available 5)Packaging Details: Roll or as the ...
we can offer all wires used in springs we can offer different high carbon grade spring steel wire ( other steel grade like stainless or alloy grade we can aslo do) we can do the spring wires in DIN17223-1/-2 EN10270-1/2 ASTM A 227/A229 , GB-4357,JIS G3521 etc. we can offer ...
