Tubular Bowl Centrifuge Separator for Sugar and Honey

Tubular separator is a precise separation machinery which fit for the lower solid content suspension liquid and lower small proportion dissolve liquid.

It was the key machinery for the pharmaceutical,food,chemical,bio-products and beverage etc.
Based on the separation function,

There are two type separator:Clarify GQ and Separation GF.GQ series tubular separator is mainly used for liquid and solid separation and GF series works on the three phase separation including the light liquid,heavy liquid and solid.

For various application and machinery operation,the tubular separator is categorized:General purpose,special type(Laboratory model,Chinese Medicine Clarification,Blood separator,Bacteria type,Biodiesel type),Explosion-proof type,Fully sealing explosion-proof type,Cooling type,Swing type,Front open type.

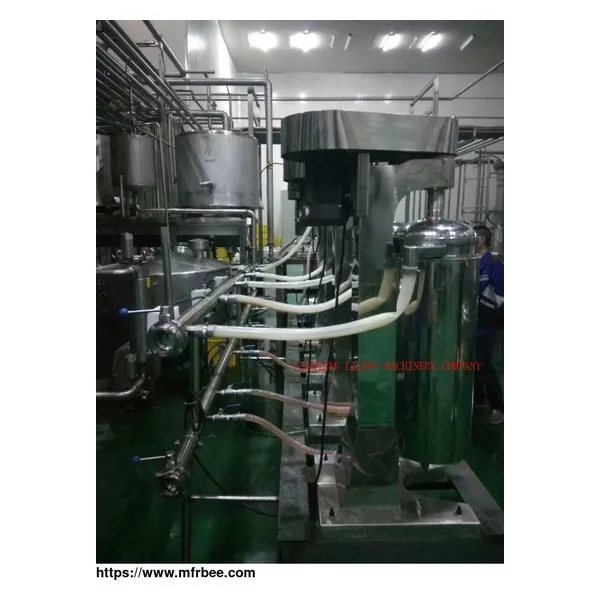

Tubular Bowl Centrifuge Separator for Sugar and Honey

parameter
model	GQ(F)45A	GQ75A	GF(Q)105A	GQY125A	GQ150A
item	GQ(F)45J	GQ75J	GF(Q)105J	GQY125J	GQ150J
bowl	diameter(mm)	45	75	105	125	142
effective height in mm(mm)	280	430	730	735	700
settling volume L(L)	0.45	2	5.5	7.4	10
speed(r/min)	0-28000	20000	16000	15000	14000
max separation factors	0-19800	16770	15025	15500	15570
nozzle diameter(mm)	2.3	2.3.5	4.6.8.10	6.8.10	8.10.12
inlet pressure(Mpa)	>0.05	>0.05	>0.05	>0.05	>0.05
capacity(kg/h)	≈100	≈500	≈1200	≈2000	≈3000
motor	type	universal motor	Y90S-2	Y90S-2	Y90L-2	Y100L-2
power(kw)	0.6	1.5	2.2	3	3
speed(r/min)	0~4500	2840	2880	2880	2880
size(mm)	580×650×750	800×400×1200	800×700×1400	850×500×1600	800×700×1600
weight(kg)	120	300	400	610	520
