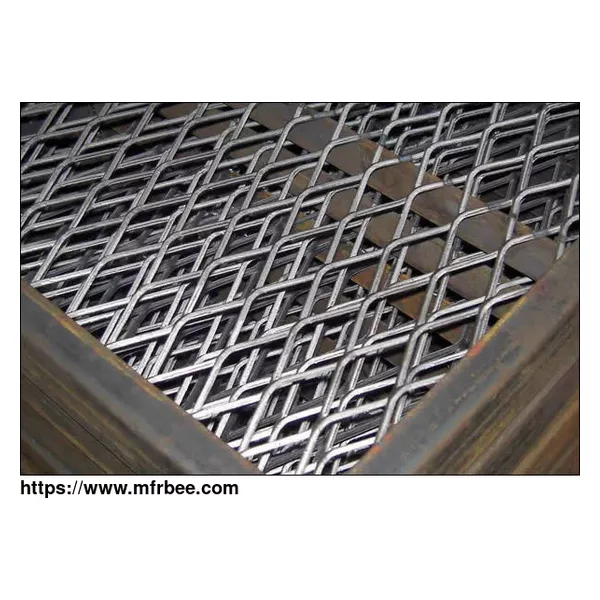

Galvanized expanded steel grating, aluminum expanded grating and stainless expanded gratings are often used walkway Flooring,expanded metal grating is ideal for use on plant runways, working platforms, and catwalks, as it is easily cut into irregular shapes and can be installed quickly by welding or bolting. Expanded metal grating is the most practical and economical mesh panels to assure strength, safety, and a non-skid surface, which requires almost no maintenance. We supply expanded steel and metal grating panels for pedestrian and light vehicle traffic and other load bearing applications. Compared with bar type gratings, expanded steel sheets offer more pattern designs.
Expanded metal walkway flooring mesh: made of Q195 low carbon steel plate, expanded metal mesh stretching machine once punched and stretched to form a diamond-shaped mesh surface, with uniform mesh and flat mesh surface. The mesh contact has a good anti-slip effect.
Material: low carbon steel plate
Thickness: 4.0mm 4.5mm 5.0mm 5.5mm 6.0mm 8.0mm
Gravity per square meter can reach 50KN
Surface: spray epoxy anti-rust primer, hot-dip galvanizing, electro-galvanizing, has good anti-rust effect and acid and alkali resistance, can withstand up to 50 years of wind and rain damage and ultraviolet radiation.
Expanded Steel Grating serves popularly in following constructions:
Ramps;
Flooring;
Platforms;
Walkways;
Treads;
Architectural facade, ceiling and other decorative uses.
Materials: Aluminum, carbon steel, stainless steel and other metals.
Grating Patterns: Diamond, triangle, scale hole, etc.
Specification: thickness:0.5mm-8mm
Hole width: 2.5mm-50mm
Hole length: 4.5mm-100mm
Openness: 0.5mm-8mm
Features
Expanded metal grating offers many advantages over bar grating. It is made of one continuous piece of material yielding a greater strength to weight ratio. There are no welded parts and the surface is naturally skid proof without further processing. The pattern and openings provides a wider range of load capacity gratings to meet your exact requirements giving greater economy to your project.
Expanded metal grating is the most practical and economical way to assure strength, safety, and a non-skid surface, .Expanded metal grating is ideal for use on plant runways, working platforms, and catwalks as it is easily cut into irregular shapes and can be installed quickly by welding or bolting.
This metal grating offers ease of fabrication, economy, strength, safety and are available in carbon steel , stainless steel and aluminum.
Expanded Metal Mesh Grid,Aluminium Amplimesh Security Grid Expanded Metal-Grid made of flattened expanded metal, is used to retrofit over existing dangerously slick gratings creating a safe, productive walking surface. Expanded Metal-Grid provides vital traction necessary to ...
Expanded Metal Mesh Stainless Steel Grade SS 304 For Plastering Wall Expanded Stainless Steel has many advantages over carbon expanded steel as it offers much better corrosion resistance and longer service life. It can be supplied with a variety of openings: 1, Standard Rhombic ...
Aluminum Expanded Mesh, Micro Mesh Expanded Aluminum Expanded Metal is made of high quality aluminum sheet/coil after being expanded on the automatic expanded machines. Aluminum mesh types including perforated mesh, expanded mesh, amplimesh, coiled and ring mesh, round hole ...
Carbon Steel Expanded Metal Mesh, Zincro Material / G.I Expanded carbon steel is the most economic expanded mesh among the metal. Use: expanded, perforated and square wire mesh sheet (Galvanized , Zincro , SS304, SS316 etc.) as per our application for air filter cartridges. ...
Expanded metal can be processed from a variety of metal materials, typically aluminum, carbon steel, stainless, brass, nickel and titanium sheet, also precious metals like silver and gold. Openings in the shape of diamond, hexagonal or special decorative shape. Benefits of ...
