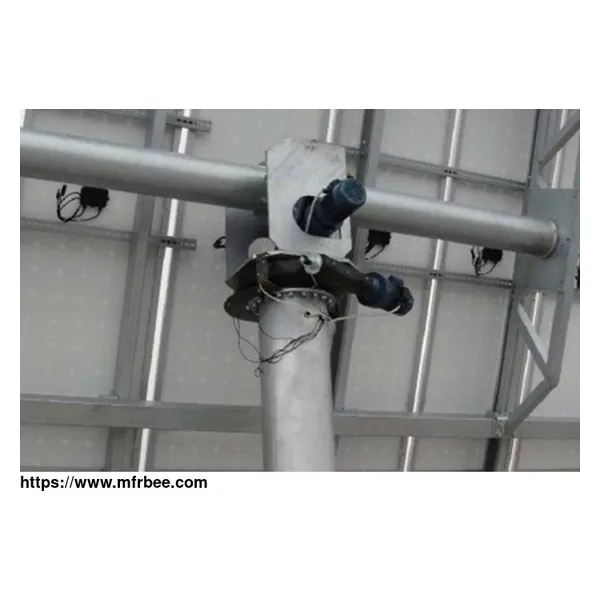

Slewing Drive For Solar Tracking System

Minimum Order
1
Packaging
N/A
Delivery
15 Days
Slew Drive for Solar Tracking System

Application Field: Photovoltaic Power Generation
Gear Ratio: 62:1 Output Torque: 6.5KN.m
Tilting Moment Torque: 33.9KN.m Holding Torque: 32.5KN.m
Static Axial Rating: 338KN Static Radial Rating: 120KN
Dynamic Axial Rating: 81KN Dynamic Radial Rating: 81KN
Precision: ≤0.2° Weight: 60KG

Application Field: Photovoltaic Power Generation
Gear Ratio: 73:1 Output Torque: 2.5KN.m
Tilting Moment Torque: 6KN.m Holding Torque: 10.4KN.m
Static Axial Rating: 133KN Static Radial Rating: 53KN
Dynamic Axial Rating: 32KN Dynamic Radial Rating: 28KN
Precision: ≤0.2° Weight: 37KG

Application Field: Thermal Power Generation
Gear Ratio: 78:1 Output Torque: 7.5KN.m
Tilting Moment Torque: 54.3KN.m Holding Torque: 43KN.m
Static Axial Rating: 475KN Static Radial Rating: 190KN
Dynamic Axial Rating: 114KN Dynamic Radial Rating: 100KN
Precision: ≤0.17° Weight: 61KG

If you want to know more applications of slewing drive solar, please visit our website.

Slew drive can also be called slew drive gearbox. Most of our slewing ring drive is kind of worm gear reducer. And the slew ring bearing is a gear drive part.
The slewing drive is a full-cycle rotary reduction transmission mechanism integrated with a driving power source. As a professional slewing ring manufacturer, Fuyong Intelligent produces high-quality slewing drive products! Any inquiry is welcome!

  • Country: China (Mainland)
  • Business Type: Manufacturer
  • Market:Africa,Europe
  • Founded Year:2016.04.08
  • Address:No.4, 1669 North Section of Huolishan Road, Cihu High Tech Zone, Anhui, China
  • Contact:Jacob Huang
