Intelligent CNC Laser Cutting Tube Machine P2060A

An expert in pipe cutting with intelligent, digital, European quality.

Smart Fiber Laser Metal Tube Cutting Machine

With the popularization of the \"Industry 4.0\" concept, GoldenLaser\'s intelligent CNC smart laser cutting machine P2060A has been fully automated. By integrating information, order placement, feeding, pipe identification, length measurement, automatic calling program cutting, blanking, palletizing, and shipping into one machine, our intelligent CNC laser cutting tube machine P2060A aims to be the most all-around laser tube cutting equipment.

At present, many users have chosen our intelligent laser pipe cutting machine. As one of the top automatic pipe cutting machine manufacturers in China, GoldenLaser can help you effectively alleviate the problem of enterprise labor shortage.

Video Display of Smart Fiber Laser Pipe Cutting Machine

GoldenLaser High-end intelligent CNC laser pipe cutting machine

Goden Laser Smart Fiber Laser Metal Tube Cutting Machine

P2060A VS P3080A

Model name P2060A P3080A

Workpiece length 0-6000mm 0-8000mm

Tube diameter range 20-200mm 20-350mm

Types of tubes Round tube, square tube, rectangular tube, oval tube, channel steel, I-beam, etc. Round tube, square tube, rectangular tube, oval tube, channel steel, I-beam, etc.

Single tube bearing weight 25kg/m 25kg/m

Laser source IPG/ nLIGHT/ Raycus fiber laser generator IPG/ nLIGHT/ Raycus fiber laser generator

Auto Bundle maximum size and weight 800mm*800mm*6000mm; 2.5T 800mm*800mm*8000mm; 2.5T

Capacities

Material 1000W 1500W 2000W 2500W 3000W 4000W 6000w

Carbon steel 6 10 12 14 16 20 25

Stainless steel 4 6 8 10 10 12 16

Galvanized steel 3 5 6 8 8 10 12

Aluminum 3 4 5 6 6 10 16

Brass 2 3 4 5 5 8 10

Copper 1 2 2 3 3 4 6

Highlights of Intelligent CNC China Fiber Laser Tube Cutting Machine P2060A

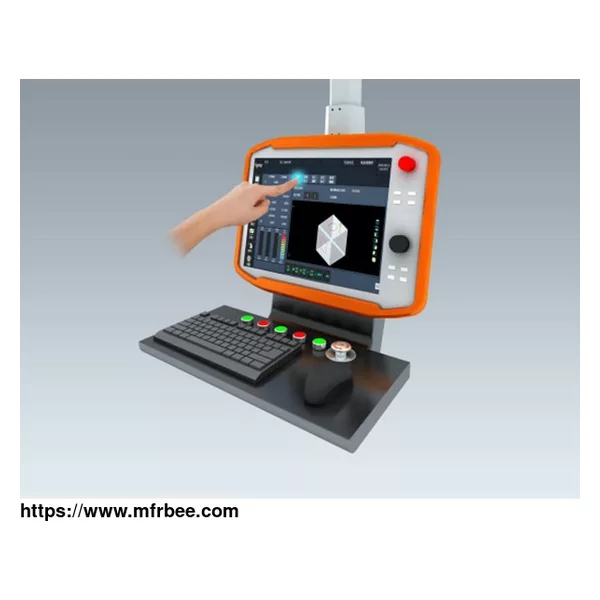

Touch Screen Technology

Upgrade from traditional button operation to touch screen operation.

● Easy user interface

● Integrated management saves time

● Easy to clean and maintain

● Durability

Automated Manufacturing

With an automatic bundle loader and unloader, you could decide the layout based on the available space, but above all, to meet your production requirements.

● Save labor but improve the tube processing efficiency. Simplify the processing procedure and realize the intelligent production mode of Industry 4.0.

(Optional, if there is no automatic bundle loader, we will name it P2060 pipe lazer cutting machine.)

Flexible Cutting

Flying cutting, jumping cutting, 3D stereo correction, non-inductive perforation, automatic recognition of seams, etc.

● These functions can realize flexible cutting of various types of pipes to ensure production efficiency and satisfying quality.

Auxiliary Feeding And Centering Device

There are two auxiliary feed centering devices at the front and back of the feed end. The centering device controls the falling position of the pipe and fixes it accurately. Then the chuck can automatically and quickly move to the pipe end for clamping.

● Make the claw grip the pipe more accurate and improve the accuracy of the finished product.

Floating Support System

During the pipe cutting process, the support automatically adapts to the change of the pipe rotation posture.

● Ensure more stability during pipe processing, more accuracy of the finished products.

Automatic Deslagging (optional)

The inner wall of the workpiece is clean and beautiful without leaving slag. There is no need for a second cleaning process, which improves the quality of the finished product.

● It is especially suitable for industries that require high precision and with the clean inner wall of finished products. For example, they are cutting stainless steel, aluminum pipe, and copper pipe fittings in the automotive industry, food manufacturing, and medical device manufacturing.

Weld Recognition (optional)

The intelligent laser cutting program is executed effectively, and the processing track automatically avoids the welding seam position for cutting.

● Avoid damaging the pipeline components and reduce the loss of your raw materials.

Finished Products of Intelligent CNC Laser Pipe Cutting Machine P2060A

If you want to know more types of china square tube laser cutting machine and oval tube laser cutting machine, please visit our website.
