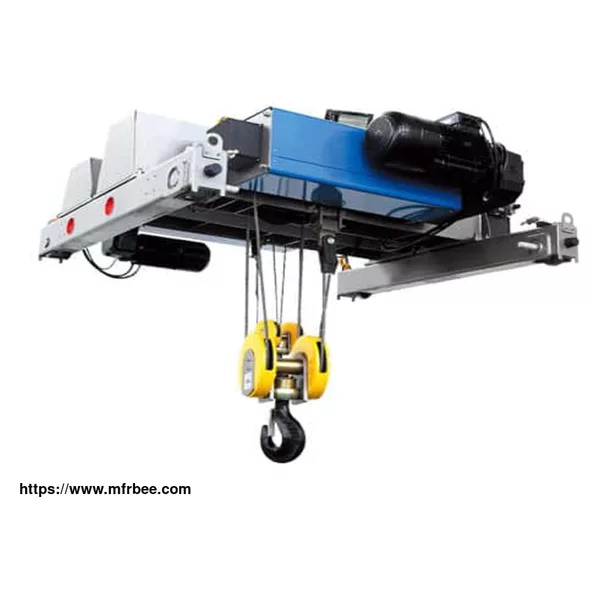

Double Girder Trolley Hoist

Double Girder Trolley Hoist can be installed on a double girder overhead crane as its lifting mechanism. The rated load is up to 80t.

Advantages of Double Girder Hoist Trolley

Modular components, simple maintenance and cost-effective

Easy operation with an ergonomically designed control pendant

Compact design with excellent side approach dimensions

Specification of Double Girder Trolley Winch Hoist

Model Double Girder Trolley Hoist

Lifting capacity 1t~80t

Lifting height 6m~36m

Power supply 3Ph,380V,50Hz or On customer request

Warranty 1 Year

Hoist motor Rugged 12/2-pole cylindrical-rotor motor (selection of frequency conversion)

Brake DC disc brake with brake release monitoring (optional)

Gear box 3-stage, helical gear reducer

After-sales service provided Field installation, commissioning and training

Machinery test report Provided

After warranty service Video technical support, Online support

Ambient temperature -25-40℃

Package type Packaged by High-quality wooden case

Application Of Double Girder Trolley Hoist

Composed by the CD1/MD1/HC etc. stationary type electric wire rope hoist with trolley, the Double Girder Trolley Hoist is mainly used for the lifting mechanism of the overhead crane and gantry cranes with the working duty of M3 or M4. The lifting speed with normal speed and creep speed and the creep speed should be selected under precision conditions. The trolley running speed only has one.
