Net Cutting Machine

Minimum Order
1
Packaging
N/A
Delivery
15 Days

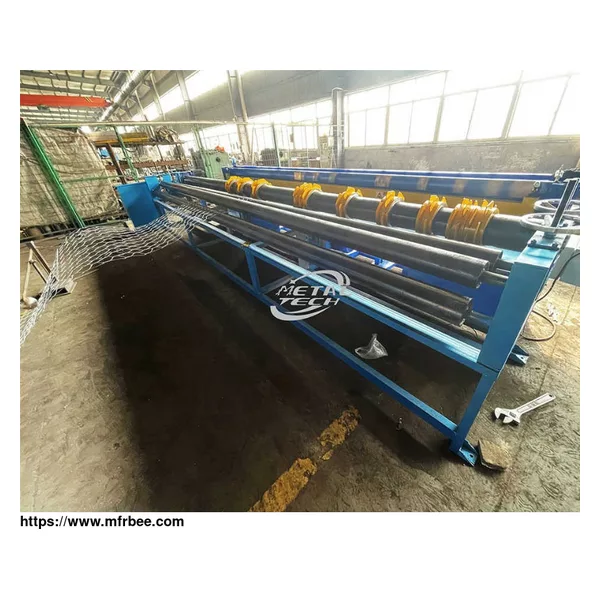

Gabion net cutter machine with servo net straightening machine is part of auto gabion production line. When the gabion machine running the servo net straightening machine will feeding the gabion mesh precision to the net cutting machine and cutting automatic.

The net straightening machine with mesh feeding plate can 100% match the mesh size and with the servo motor + Metal Tech, the high-tech program can feeding the net very accurately. And the Metal Tech cutting machine with hydraulic cutting blade can cut gabion net very smooth. However, the hydraulic oil should change every half year.

Specifications of Net Cutting Machine
No. Item 4 m net straightening machine
1 Max. working width 4000mm
2 wire diameter ≤5mm
3 Upper roll size Φ133mm * 3pcs
4 Down roll size Φ133mm * 4pcs
5 Straightening thickness ≤2.8mm
6 output 8.5m/minute
7 power 5.5KW
8 roller speed 20turn/minute
9 weight 2T
10 size(LXWXH) 4550X1450X1400(mm)
11 infrared ray meter counter
12 wire stop device when the cutting machine cut the net
13 frequency motor

Parts 4 m net cutting machine
Cutting width Max. 4 m
Raw material compression strength 450 N/mm²
angle 1°20′ 1°30′ 1°30′
Aperture depth 130 mm
Cutting speed 11 Per/minute
Cutting blade length 4100 mm
Working plate height 800 mm
Main engine power 5.5 KW
rotation 970 r/min
Back striker engine flow 0.37 KW
speed 660 r/min
Over size 4800*1750*1950 mm
weight 5 T

Advantages of Net Cutting Machine
Metal tech automatic gabion cutting machine ,gabion mesh machine use high-quality material parts ,such like NSK bearing, PARKER hydraulic system , quenching and brazing half gear etc,strict quality management all these guarantee superior quality and long performance gabion machine life.

Details of Net Cutting Machine
Finished Products of Net Cutting Machine
Container Loading of Net Cutting Machine
Metal Tech Care of Net Cutting Machine

Now the price of hexagonal wire mesh machine is not high, if you want to buy a high quality wire mesh manufacturing machine for sale, anything you need, please contact us.
