bag filter housing

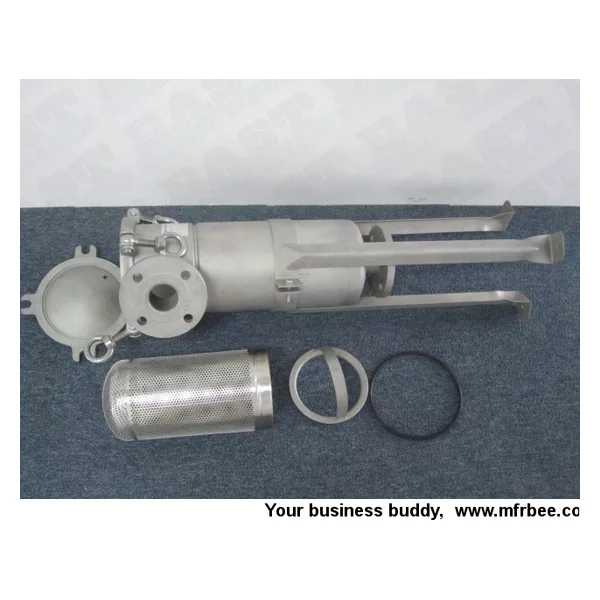

HFF Side-in bag filter

Our single/durable bag filter designs to give you the convenience in handling your filtration process, easy opening mechanism and bag filter fixing ring to ensure good sealing.

It is suitable for general filtration requirement in all the industrial applications with liquid of low to medium viscosity.

Features:

1. Versatile design, easy operation

2. Swing eyebolt

3. Unique& reliable seal designs

4. Can be equipped with all standard bags.

5. Inner and outer surface of the cylinder using sandblasting, easy to clean

6. Reference to the ASME standard of design

7. Operating pressure: 10 bar / 160 ° C

Options

·JIS / DIN / ANSI flange connection

·Heating jacket for high viscosity liquid

·Flexible inlet/ outlet orientation

·SS304/ SS316L material available

Accessories

·Foot -stool or pothook to fix the filter

·Floating ball makes bag changing easy

·Magnetic bar adsorb metallic particle

·Mesh basket can replace the filter bag

·Duplex filters for double flow also available

Applications

·Chemical

·Pharmaceutical

·Food & Beverage

·Paint

·Automotive Coating

·Oil Refinery

·Marine

·Water Treatmen

TECHNOLCY DATA

Type

HFF-B101-050G

HFF-B102-050G

Size

Size 01

Size 02

Filter Area

0.25㎡

0.50㎡

Theoretical Flow Rate

20m³ /hour

40m³ /hour

Maximum Operating Pressure

10.0bar

Maximum Operating Temperature

120 Deg C

Material of Construction -- Cylinder, the part against liquid, Restrainer Basket

Type 304 or 316L stainless steel

Seal Material

Buna, EPDM, Viton, PTFE,

Standard Inlet/Outlet

2” flange or BSP 2” socket

Surface Finish

Glass Bead Blasted (standard)

Filter Volume

15.5 litres

27.0 litres

Housing Weight

15kg (approx.)

20kg (approx.)

Installation Height

98cm (approx.)

181cm (approx.)

Installation Space

50cm x 50cm (approx.)

di�0m ( `# bottom-width: 1pt; border-style: none solid solid none; border-bottom-color: windowtext; vertical-align: top; border-right-width: 1pt; border-right-color: windowtext; width: 73px; height: 18.6pt; ">

0.20

3.8

Customized design bags to meet your specific application
