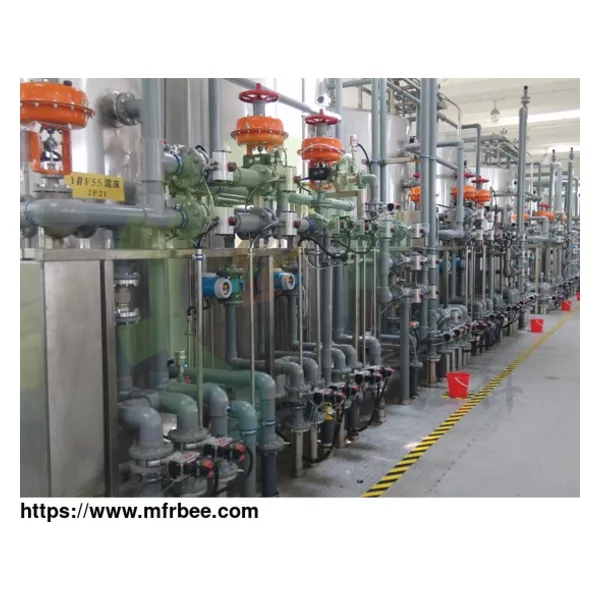

Full Automatic Intelligent Ion Exchange System

HVD-AIE-Q automatic intelligent ion exchange filtration system, using valve array control, desalting (decoloring), regeneration, washing at the same time, intelligent control, one-button start, online monitoring of various indicators during cation and anion exchange in the ion exchange treatment tank. The ion exchange equipment adopts bottom feeding and top discharging. The ion exchange chemical material is in full contact with the mixed bed ion exchange resin and the pressure is reduced to avoid the resin breaking. Compared with the traditional ion exchange machine, the consumption of chemicals and detergents can be saved by nearly 50%.

Features of Full Automatic Intelligent Ion Exchange System

Serial column desorption, low concentration to push high concentration, solves the problem of washing water strip in ion exchange water treatment unit.

Online backwashing and cross regeneration to ensure the water ion exchange resin filter exchange capacity.

Column ion exchange regeneration makes the regenerator fully utilized and reduces the consumption of the regenerator.

Ion exchange resin column washing reduces the amount of washing water and reduces the discharge qty. of sewage.

Valve array control of ion removal filter can realize cross-column operation and facilitate equipment maintenance.

Automatic intelligent control reduces human factors and ensures the stability of discharging quality.

HongVadar relies on the professional design, the strict production management, the fine processing procedure, provides the high efficiency and energy saving ion resin filter for the customer. The ion exchange company has passed the international ISO9001 quality system certification, and with the design and manufacturing capacity of pressure vessels. Customers can choose international ISO, EU CE and other standards ion exchange technology products according to their needs with the best ion exchange resin filter price.

Full Automatic Intelligent Ion Exchange System Technical Parameter

Model Feed DS, % I.E. feed capacity, m3/h Working temp. ℃ Discharge cond. Product capacity, tpy

HVD-AIE-Q1.0 28-35 3.0-4.5 45-55 ＜20 10000

HVD-AIE-Q2.0 28-35 6.5-8.0 45-55 ＜20 20000

HVD-AIE-Q3.0 28-35 8.5-10.5 45-55 ＜20 30000

HVD-AIE-Q6.0 28-35 16.5-20.5 45-55 ＜20 60000

HVD-AIE-Q10.0 28-35 27.5-34.5 45-55 ＜20 100000

HVD-AIE-Q15.0 28-35 41.5-51.5 45-55 ＜20 150000

HVD-AIE-Q20.0 28-35 55.0-69.0 45-55 ＜20 200000

Beijing Hongvadar Engineering Technology Co. Is a professional sweet corn processing plant, we provide cassava starch processing line, single cyclone separator, ion exchange water filter system and etc. Want to know ion exchange resin cost or ion exchange water filter cost, contact us.
