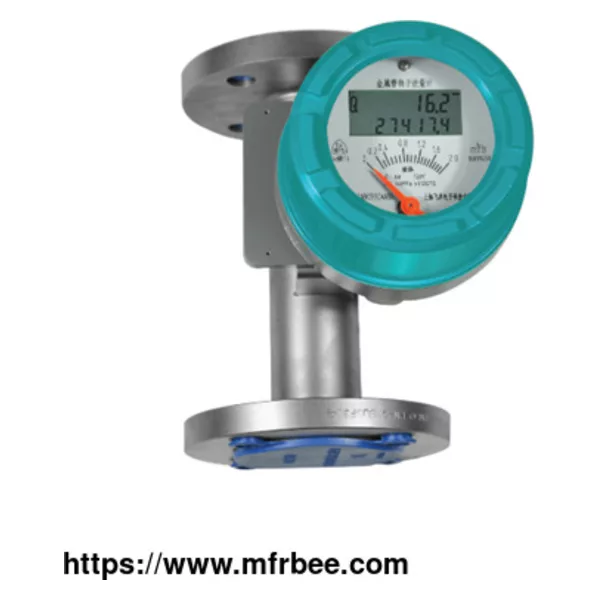

Rotary Flow Meter

FOB Price: USD $10.00 / Piece
Place Of Origin: Shanghai,China

Minimum Order: 5

Packaging: Carton box or as customer required

Delivery: 10-15 Days

FEEJOY rotating vane flow meter is based on the float position measuring a variable area flow meter, its detection part is made up of a vertical from bottom to top expansion tapered tube and a free to move up and down on the tapered tube shaft can float, float in the cone tube height corresponding to the through traffic, converter converts float high volume flow scale, complete the flow measurement. Suitable for measurement of small flow rate, low flow rate and various harsh medium conditions. If you want to buy rotary vane flow meter, or know more about rotary flowmeter, please contact us!

It's generally divided into glass and metal rotary flow meter. The metal rotary flow meter is the most commonly used and low-cost flow meter in the industry. For small diameter corrosive media, glass is usually used. Due to the fragility of glass, the key control point is also a rotary flow meter made of precious metals such as titanium.

Features of Rotary Flow Meter

The rotary flow meter is a variable area flow meter based on float position measurement.

It adopts an all-metal structure.

It adopts a modular concept design.

Its pressure loss is small.

The range ratio is large (10: 1).

It's suitable for flow measurement and process control of environmental and various media conditions.

Advantages of Rotary Flow Meter

The metal rotary flow meter is the most commonly used flowmeter in industry and laboratory. It has the characteristics of simple structure, intuitive, small pressure loss and convenient maintenance. The rotameter is suitable for measuring the small flow through the pipe diameter D <150mm, and can also measure the flow of corrosive media.

When in use, the rotary flow meter must be installed on a vertically-stretched pipe section, and the fluid medium passes through the rotor flowmeter from bottom to top.

The rotary flow meter is a variable area flow meter based on float position measurement. Adopt all-metal structures. Modular concept design, because of its small size, small pressure loss, large range ratio (10: 1), easy installation and maintenance, etc., it is widely used in various industries and complex, harsh environments, small flow rate, low flow rate, various flow and process control for a variety of harsh media conditions. The correct installation of the metal rotary flow meter is particularly important for the normal use of the flowmeter.

There are many industrial instrumentation suppliers, but we are one of the best choices for you. Contact us to buy resistive level sensor.
