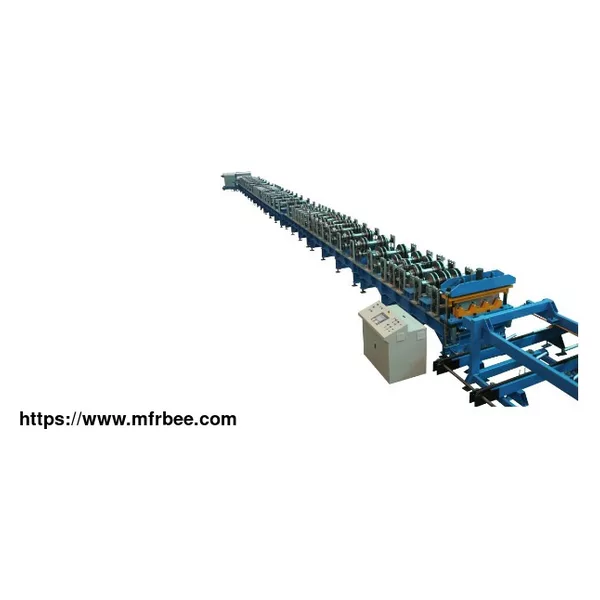

Steel Deck Roll Forming Machine

Place Of Origin: Zhejiang, China

Minimum Order: 1

Packaging: wooden packing or naked

Delivery: 2 months

The sheet produced by this steel roll forming machine has high strength with big wavelength, and adheres well to concrete. Used on tall buildings, it not only saves steel mold sheet, but also reduces the weight of the storey.

The common thickness for final products depends on different material, normally it's 0.6-1.2mm. For the recommend profiles, we can recommend the popular end products and we can also design deck roll former according to your drawings.

Working process of the deck roll former: Decoiling → Guided feeding → Roll forming → Cutting to length → finished panel

HG series forming machine is professional equipment for steel decking. The steel deck features a simple design, high ribs, high strands, and specially used in high story building and the large or medium-size industry or civilian construction. It helps users to simplify the construction process and save investment. The equipment has stable performance and lower power consumption, which gains customers phrases.

The self-supported steel deck wholesale production line, self-developed by Zhejiang Jinggong Science and Technology Co., Ltd., specially developed for speeding up construction, reducing the workload on spot, and saving construction cost. It is widely applied to medium and high-story steel structural construction that can save moulding for structure and to decrease the load of floor. The production metal deck roll forming line is featured by reasonable structure, good appearance, high quality, etc. It consists of truss welding line, floor deck roll forming machine, and board spot welding machine, combining mechanism, electricity, hydraulic, and pneumatics with microcomputer control. It performs whole set production process of steel molding board’s truss, galvanized steel forming and assembling & welding. The line's annual single-round production capacity reaches 300 000 square meters

Technical Parameters Of Steel Deck Roll Forming Machine

No. Item Para Memo

Suitable material Type galvanized steel,

Thickness (mm) 0.6-1.2

Yield Strength (MPa) ≤345

Width (mm) 1220

2 Forming Speed (m/min) About 20 Not including cutting time

3 Forming main motor power(KW) 22 Depend on actual design

4 Main hydraulic station power(KW) 5.5 Depend on actual design

5 Decoiler motor power (KW) 5.5 Depend on actual design

6 Decoiler hydraulic station power (KW) 3 Depend on actual design

7 Total power 36 Depend on actual design

8 Power AC480V，60Hz，3 Phase

Supply List Of Steel Deck Roll Forming Machine

No. Name Qty. Remark

1 Decoiler 1set

2 Guiding device 1set

3 Forming system 1set

4 Cutting system 1set

5 Output device 1set

6 Hydraulic system 1set

7 Electrical system 1set

Main components of Steel deck floor roll forming machine

The line consists of uncoiler, transmission, roll forming, post-shearing, auto stacker, hydraulic system, controlling system, and etc.

Uncoiler

Cantilever-type fully automatic uncoiler adopts ultrasonic sensor technology and frequency inverter adjustment. The pressing arm hydraulic-driven power is optional. All electrical parts and hydraulic parts are installed inside of uncoiler frame.

Roll Forming

The roll forming system consists of a guiding device, machine base, transmission parts, and roll forming rollers, etc. The cooling and lubricating device is optional.

Post-shearing device

The post-shearing device adopts frame-type hydraulic shearing. The panel is cut stably.

Auto staker

Programming control can calculate the quantities of shear panels. and automatically stacking, moving transversally or lengthways for packing.

Hydraulic system

Hydraulic system is installed inside the machine base. The design is reasonable and compact.

Controller

Mitsubishi PLC Frequency inverter adjustment to realize fully automatic operation.

Operator

The operator can set parameters such as badges, length of panel's quantities in the touch screen
