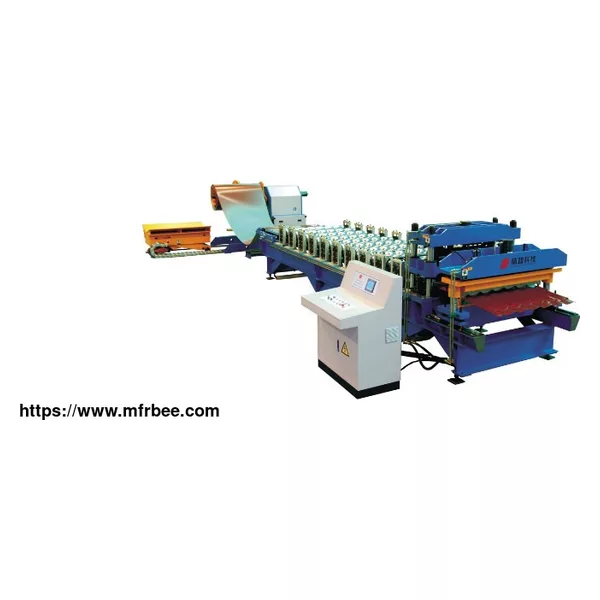

High Speed Tile Forming Machine

Place Of Origin: Zhejiang, China

Minimum Order: 1

Packaging: wooden packing or naked

Delivery: 2 months

This series of high-speed tile roll forming machine is a new-generational type roof tile roll forming machine with high speed and high-efficient, including decoiler system, sheet guiding system, roll forming system, pressing system, cutting system, auto-stacker system, hydraulic system, controlling system, etc.

The common thickness for final products is normally 0.4-0.8mm to different profiles and materials. We also have other roll forming machines, like the ridge cap and downpipe machines for roof use.

High-speed roof tile roll forming machine for sale on jinggongmachine.com, contact us right now!

Jinggong glazed tile roll forming machine is one professional equipment to produce steel tile, which is comprehensively used in the large and medium-sized houses, villas, etc.

This line includes uncoiler, coil sheet guiding, roll forming, punching, post-cutting, hydraulic system, controlling system, and etc.

Technical Parameter Of High Speed Roll Forming Machine

Item parameter

Modle HVM-183

Material Type Colored steel sheet

Thickness 0.4-0.7

Yield strength 230-300

Max.Forming speed 4-5

Roller material 45#Steel with chrome coated

Roller driven type Chain transmission

Controller PLC

Operation Touch screen+button

Hydraulic system pressure 13

Hydraulic station motor power 7.5

Main motor power 4

Total power 11.5

Total weight About 10000

Technic Flow Of High-Speed Tile Forming Machine

Decoiling→guiding and feeding→roll forming→pressing→cut to length→run out table

Main Components of High-Speed Tile Forming Machine

Uncoiler

Cantilever-type fully automatic uncoiler adopts ultrasonic sensor technology and frequency inverter adjustment. The pressing-arm hydraulic driven power is optional. All electrical parts and hydraulic parts are installed inside of uncoiler frame.

Roll forming

Roll forming system consists of guiding device, machine base, transmission parts. and roll forming rollers, etc. The filming and pre-slitter device is optional.

Punching

The punching system adopts hydraulic type punching, which works stably and without scratch. The single punching or twin punching is optional.

Post-shearing device

Post-shearing device adopts frame type hydraulic shearing. The panel is cut stably and can avoid distortion. This design don't have any scrap in the process of cutting.

Hydraulic system

Hydraulic system is installed inside of machine base. The design is reasonable and compactly.

Controller

It adopts Mitsubishi PLC and frequency inverter adjustment to realize fully automatic operation. Operator can set parameters such as badges, length of panels quantities in the touch screen.
