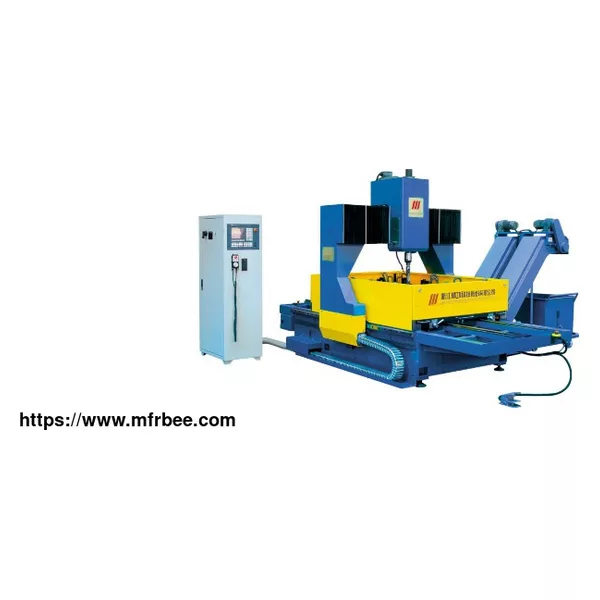

CNC Drilling Machine

Place Of Origin
Zhejiang, China
Minimum Order
1
Packaging
wooden packing or naked
Delivery
2 months
This CNC drilling machine employs AC servo motor to drive the X axis and Y axis, while its Z axis is positioned by high accuracy raster ruler. By using semi-closed closure digital control system, the machine has reliable performance. The operation of the machine can either be automatic or manual. This machine is widely used in steel frame construction.
One machine can not only produce one size, it depends on the machine designing. Our drilling machine is of CNC control system, X, Y axis AC servo control and Z axis hydraulic feeding, so it realizes quick positioning and frilling. The drill has been awarded 2 patents of the utility model, and is widely used for drilling of yoke plate and plate-like parts in steel constructions.
CNC Drilling Machine Specification

Item Parameters
Drilling diameter φ50
Max.dimension of workpiece 1650*1000*80
Rotary speech of main shaft 130-400r/min, stepless and adjustable
Feeding type of main shaft Hydraulic
Quantity of moveable working platform 2
Workpieces can be tooled for once 4group
Clamping type Hydraulic
X and Y axis fast-moving speed ​
12m/min

Jinggong is a professional roll forming machine company that has many years' experience and a lot of successful cases. We have got many positive reviews regarding this roll forming machine. If you want to know more, please contact us now!
