Characteristic :This type machine is the most ideal machine for printing material, adhesive label, adhesive film slitting and die cutting.It equipped with Omron(Japan) motion control system, and regis...

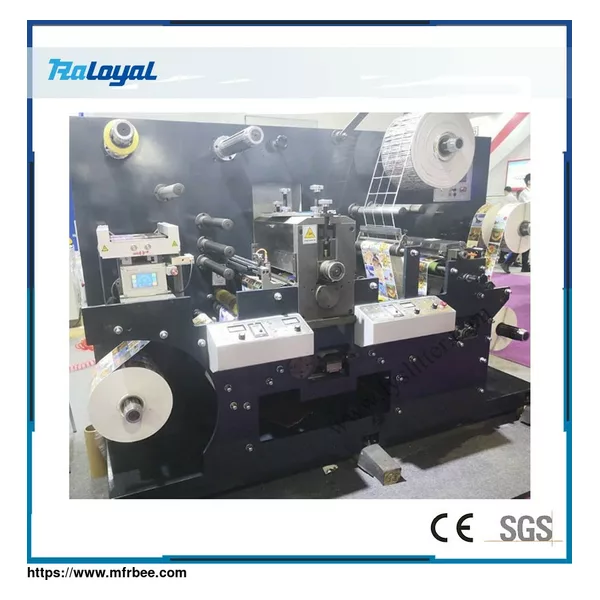

Features of LY-RS320 Semi Rotary Die Cutting Machine
Characteristic :
This type machine is the most ideal machine for printing material, adhesive label, adhesive film slitting and die cutting.
It equipped with Omron(Japan) motion control system, and register sensor to arrange high accurate rotary die-cutting system. This machine is applicable to pre-printed labels. Unwinder, rotary die-cutting, slitting and rewinding can be finished in one process. It can be run with semi-rotary mode as well as full rotary mode. With semi-rotary time, the machine doesn’t need to change different magnetic cylinders for different labels because it can go backward. Only flexible die is required to be changed. The machine was equipped with USA web guiding to guide the material smoothly. The machine has the characteristics of compact structure, fast speed, high efficiency, easy operation, accurate slitting, steady running etc.
Specifiction LY-RS320 Semi Rotary Die Cutting Machine
Technical parameter
Machine model LY-RS320
Slitting speed 120m/min
Die cutting speed 70m/min (intermittent)
120m/min (full rotary)
Max. web width 320mm
Max. unwinding diameter 600mm
Max. rewinding diameter 600mm
Die cutting length 200-450mm (intermittent)
250-550mm (full rotary)
Overall dimension 3500×1300×1520mm
Machine weight 2500kgs
Voltage 380V, 3Phases, 50Hz
Power 12kw
Raloyal China Machinery Co, Ltd., is one of the most professional flexo printing machine suppliers, we provide china slitter rewinder, slitting and rewinding machine, Ruian Loyal label slitter and etc. Contact us to know more.
