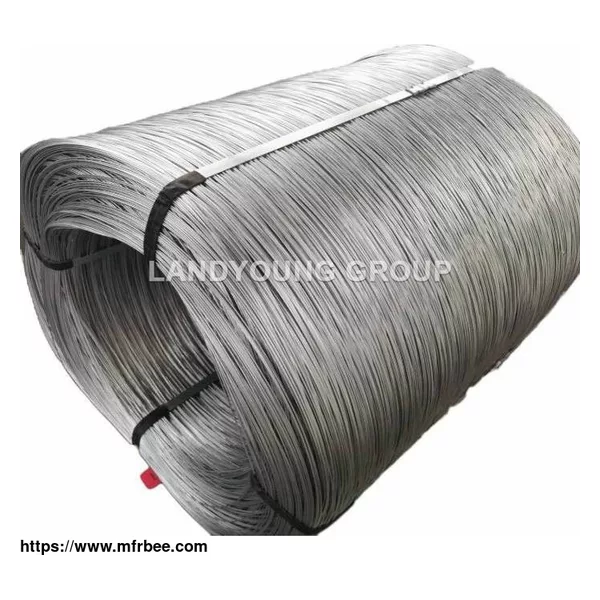

Hot Dipped Galvanized Wire LANDYOUNG
Products | Hot Dipped Galvanized Wire (HDG wire) |
Diameter(mm) | 0.3mm-5.2mm |
Zinc Thickness | 40-60g/m2, 90-120g/m2 and Minimum 240g/m2 |
Tensile strength | 380-500N/MM2 and 700-900N/MM2 |
Package | coil, spool coil, basket, pallet |
Introduction:
Hot-dipped galvanized wire (HDG wire), is made of high quality low carbon steel wire rod (Q195, Q235). It is processed by drawing molding, pickling rust removal, high temperature annealing, galvanizing, cooling and so on.
galvanized iron wire
Strong corrosion resistance
High wear resistance
The amount of zinc on the wet environment is not easy to fall off.
Advantages:
Made of high quality material
Proper coil characteristic
Easy to unroll and install
Accuracy of time control
Application:
Hot dipped galvanised wire is used in making cages,wire mesh,Cable armouring wire, construction, handicrafts, product packaging and daily civilian and other fields. Also be used in various fields such as building, handicraft, wire mesh, galvanized hook net, wall screen, highway fence, product packaging and daily civilian.
Standard:
In line with BS and ASTM
