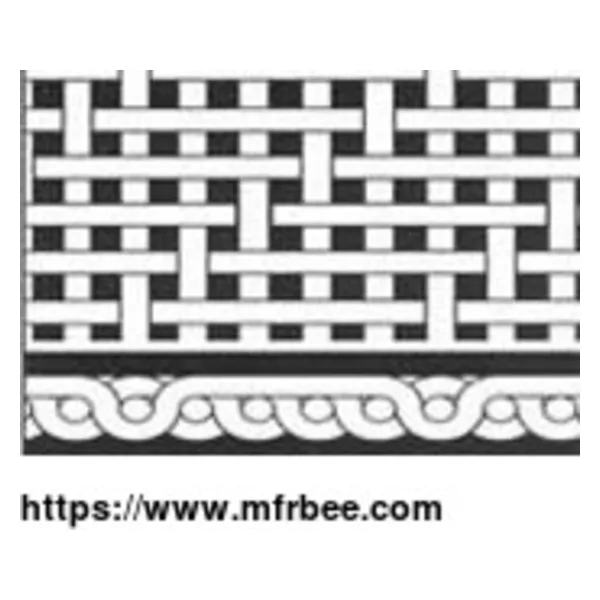

Weaving Method: Five Heddle Weave is one of the multi-heddle weaving pattern, features a smooth top surface and an open lower surface of the woven wire mesh
Material for Five Heddle Weaving: Stainless steel wire SUS304, SUS304L, SUS316 or SUS316L
Standard roll size: Rolll width is 1m or 48" while standard roll length is 30m or 100'.
Packing: Wrapped with moister-proof paper, then in wooden cases.
Uses: Stainless Steel five-heddle woven wire cloth is mainly used for acid, alkali sieve, filter for chemical fiber industr and various gas, liquid filtration and separation of other media.
Common Specifications of Five-Heddle Dutch Weave:
Meshes per inch (25.4mm) Warp x Weft | Wire Diameter (mm) | Aperture (mm) Warp x Weft | Open Area % | Weight (kg/m2) |
108 X 59 | 0.160 | 0.075 X 0.271 | 20 | 1.07 |
110 X 60 | 0.160 | 0.071 X 0.263 | 19 | 1.09 |
38 X 38 | 0.150 | 0.518 X 0.518 | 60 | 0.43 |
