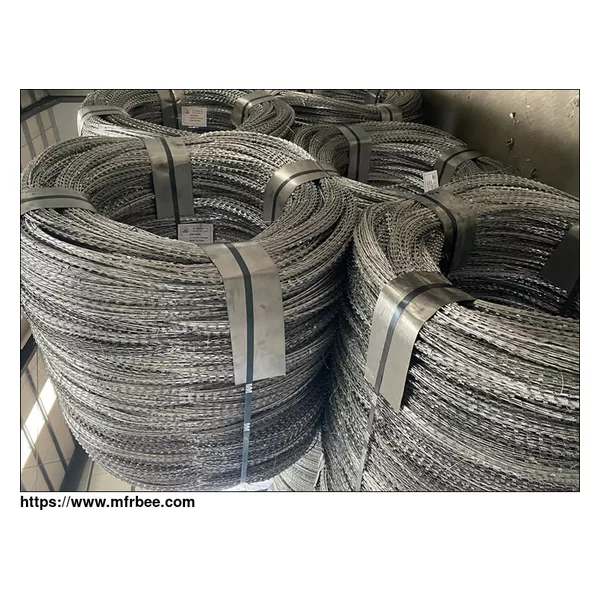

Razor Wire Security Fencing
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Security Razor Wire Coils, BTO 22 - GALVANISED
Blade thickness 0.50 mm
Wire diam 2.50 mm
Barb length 22 mm
Barb width 15 mm
Outside diam 450 mm
Coil of per bundle 33 mm
Standard length per bundle
Weight (kg/bundle): 3.90 kg/bundle
For India market.
Razor Wire Fence, with PROTECCION TIPO CUCHILLAS, Galvanized, 56 Loops
Out side diameter: 450 mm
No. of Loops:56
Standard Length per Coil: 8 to 10 m: 3 clip
Type: BTO 30, BTO 28, CBT-60.65.
Cross type razor wire
Standard materials: galvanized
Barb distance: 39 -42 mm
Barb length: 25 – 30 mm
Barb width: 14 – 18 mm
Wire diameter: 2.5 mm
Thickness: 0.5 mm
Out side diameter:500 mm
No. of Loops:56
Standard Length per Coil: 8 to 10 m: 3 clip
Type:BTO 30 or BTO 28
Cross type razor wire
Standard materials: galvanized
Barb distance:39 -42 mm
Barb length:25 – 28 mm
Barb width:14 – 17 mm
Wire diameter: 2.5 mm
Thickness: 0.5 mm
Galvanised Anti - Climb Security Fence:
BTO-22 Razor Wire and Weld-Net Fencing
Razor Wire Barbed Tape
Covered Length (m) - 14-15 м .
Wire diameter - 2,5 mm.
Core wire material: Galvanized highly-carbon steel wire.
Blade material: Galvanized sheet ess steel plate
For Ukaine market
Galvanised anti -climb welded mesh, in 1/2" x 3", 1" x 3" , or 2" x 2" sizes
2.0 to 2.5m fence height for Golf course perimeter fencing
Blade razor wire fixed on top of the anti climb security Fence
Drawing reference of blade length, blade space and core wire dia.
Razor Wire Coil and Loops Details:
| Outside Diameter | No. of Loops | Length per Coil | Type | Notes |
| 500mm | 102 | 16M | BTO-22 | Cross type |
| 600mm | 86 | 14M | BTO-22 | Cross type |
| 700mm | 72 | 12M | BTO-22 | Cross type |
Razor Wire Barb Details with Chemical Composition:
| Reference Number | Thickness | Wire Dia | Barb Length | Barb Width | Barb |
| spacing | |||||
| BTO-22 | 0.5 | 2,5 mm | 22 | 15 - 16 | 34 - 36 |
| Chemical composition wire (%) | ||||
| C | Mn | Si | S | P |
| 0,68 - -0,74% | 0,5 -- 0,8% | 0,17 - 0,37% | < 0,03 | < 0,03 |
