W-Beam Highway Guard Rails

Minimum Order
1
Packaging
N/A
Delivery
15 Days

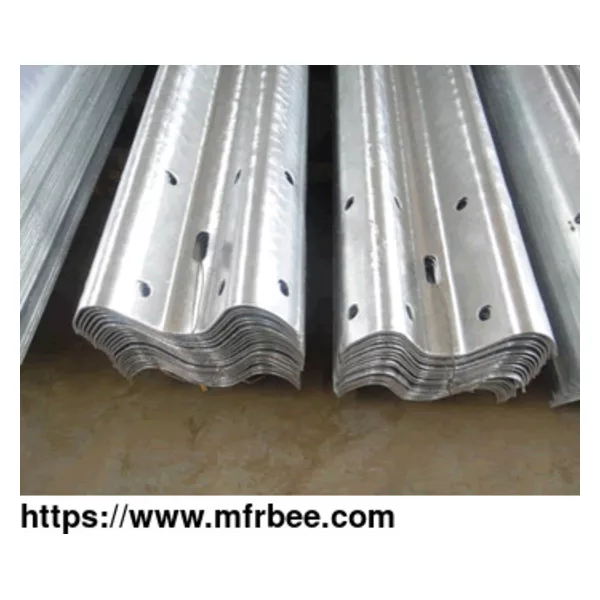

W-beam guardrail has a section or profile of W shape, it is also named as two wave beam guardrail. This is the major type of beam barriers for highways safety with symmetrical designs on each side of the beam. We supply two kinds of finishes for W beam guardrail panels: hot dipped zinc coating

Surface finishing: Hot dipped galvanized finish or powder coated.

Zinc coating thickness (double sides): 550 g/m2 (40µ) / 1100 g/m2 (80µ) / 1200 g/m2 (85µ)

Relevant parts required for guard rails: post, spacer (C, U and Sigma types etc) and fasteners

Profile: W-beam / two wave.

Plate Thickness:2.5mm-4mm

Thickness Tolerance: +/-0.015mm

Popular Specification of W Beam Guardrails:
Wave width: 310mm
Wave height: 85mm
Plate thickness: 2.5mm - 4mm
Beam length: 4320mm

Scise Most Popular W Beam Guardrail System ( beams and necessories parts for installing ) for Export is composed as following:

Guardrail W-Beam Galvanized including bolts, nuts and washers;
Guardrail Steel Post, Box Beam;
Guardrail End Units;
Guardrail Terminal Units;
Hot Dipped Galvanized Steel Guardrail W Beam;
Hot dipped galvanized terminal section;
Hot dipped galvanized round steel post;
Hot dipped galvanized post cap;
Hot dipped galvanized black spacer;
Hot dipped galvanized flat plate washer;
Hot dipped galvanized bolts.
