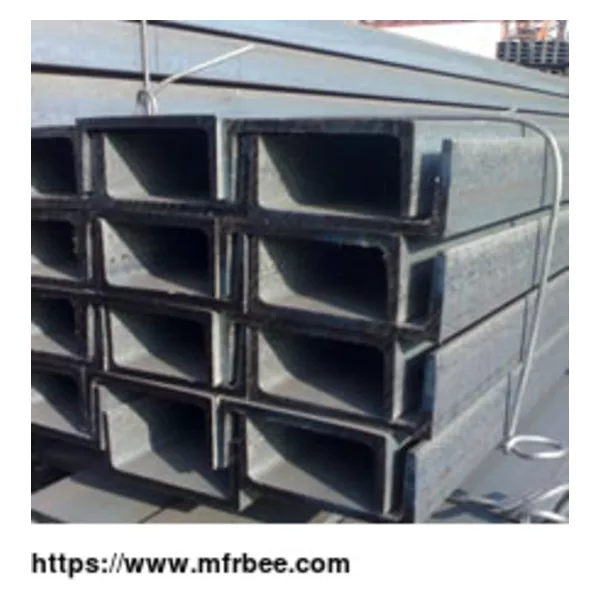

U CHANNEL BEAMS(JIS) | ||||
MATERIAL:Q235/SS400/ST37-2 and Q345/ST52 | ||||
Size | Size/mm | Theoretical Weight | ||
h | b | d | kg/m | |
75*40*3.8 | 75 | 40 | 3.8 | 5.3 |
75*40*4.0 | 75 | 40 | 4 | 5.6 |
75*40*4.5 | 75 | 40 | 4.5 | 5.85 |
75*40*5.0 | 75 | 40 | 5 | 6.92 |
100*50*3.8 | 100 | 50 | 3.8 | 7.3 |
100*50*4.2 | 100 | 50 | 4.2 | 8.03 |
100*50*4.5 | 100 | 50 | 4.5 | 8.97 |
100*50*5 | 100 | 50 | 5 | 9.36 |
125*65*5.2 | 125 | 65 | 5.2 | 11.66 |
125*65*5.3 | 125 | 65 | 5.3 | 12.17 |
125*65*5.5 | 125 | 65 | 5.5 | 12.91 |
125*65*6 | 125 | 65 | 6 | 13.4 |
125*65*5.5 | 150 | 75 | 5.5 | 14.66 |
150*75*5.7 | 150 | 75 | 5.7 | 16.71 |
150*75*6 | 150 | 75 | 6 | 17.9 |
150*75*6.5 | 150 | 75 | 6.5 | 18.6 |
