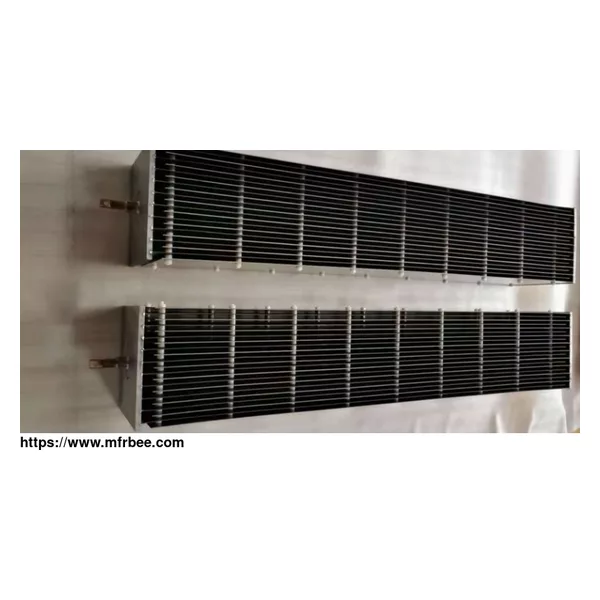

MMO Titanium Anode
Product Name: Titanium Anode
Base Material: Gr1 Gr2
Coating: Ruthenium-Iridium oxide coating, Ruthenium-Titanium coating;
PT/IR/Ru Coated Titanium Anode/Mmo Coating Titanium Sheets Anode/Electrode Dsa
Size: Thickness ≥ 1.5mm, width ≤ 1200mm, length ≤ 6000mm
Tray Size: 20*960*960mmTitanium Mesh Size: 1.5*887*887mm
Baffles: Gr2 Ti Plate Thickness 2.0mm Custom-made size available
Shapes: Sheet, Plate, Round, Tube, Mesh, Titanium Basket for Electroplating/ Ti Basket;
Customized Shapes
Status: Annealed
Application: Papermaking, Food, Construction, Ocean, Aerospace, Aviation, Electronics,
Metallurgy, Pharmacy, Salt, Chemical, Petroleum
Active coating titanium anodes (DSA)
Firmakes Titanium could make different sizes and shapes according to designed drawing by clients, so as to obtain the best effects.
Titanium anode coating, which consists of mixed metal oxide (MMO), such as RuO2 (Ruthenium)--the RuO2 coating thickness ≥ 10um, IrO2 (Iridium)--the IrO2 coating thickness ≥10um, TiO2,Ta2O5 (Tantalum), Pt (Platinium)--0.5-5 micron, PbO2--the PbO2 coating thickness 0.6-1mm, can distinctly reduce cell voltage during the electrolysis of chlorine evolution, oxygen evolution and have remarkable energy-saving effect and longer lifetime. The substrate is GR1 or GR2 titanium material, which can be reused and re-costed. Titanium anode is also called as DSA or insoluble titanium anode due to its dimension stability and high corrosion resistivity. With such advantages, titanium anode won't pollute electrolysis system and increase final products purity, reduce the maintenance cost of the equipment.
DSA Titanium Anode Application Fields:
Copper recovery in etching liquid, electrodialysis industry, MMO cathodic protection, sewage treatment, swimming pool disinfection, electrolysis, sodium hypochlorite generator, chlor-alkali industry, water heater anticorrosion, lonized water electrolysis, electroplating, hydrometallurgy.
DSA Titanium Anode Available Shapes: sheet, wire, mesh,tube, ring, strip, mesh basket, etc.
Titanium Anode used for Chlor-Alkali Industry
Conductivity of conductive polymer and corrosion resistance are the two most important characteristic, also a very important criterion for normal operation and life length. We can through the testing of volume resistivity and electrolytic strengthen life to control these two ...
The MMO Expanded Mesh Anode is usually used for the sea dock, parking lot, reinforced concrete structure, bridge floor & pier and floor control dam, etc., the expected life could be 20 years. Specification:1.10m x 76m Current Output:18.8mA/m2 Diamond Dimensions(mm):34 ? 76 ? 0. ...
MMO tubular anode for cathodic protection with cable Elade’s MMO tubular anodes can be made singly or in strings, the substrates are using of seamless titanium tubes which meet standard of ASTM B338 in Grade 1 or Grade 2 Chemical Composition. Elade’s MMO tubular anodes ...
Titanium Substrate:Meet ASTM standard B265 Grade 1 or Grade 2 MMO mesh ribbon anode Parameter Specification Current Output Diamond Dimensions(mm) Expected Life(Y) 10mm x 76m 2.8mA/m 2.5 x 4.6 x 0.6 75 13mm x 76m 3.5mA/m 2.5 x 4.6 x 0.6 75 19mm x 76m 5.28mA/m 2.5 x 4.6 x 0.6 75 ...
The coiled discrete anode is development by Shaanxi Elade New Material Technology Co.,Ltd for two years with patent. This coiled discrete anode is coiled by titanium wire which meets ASTM standard, and seal the both end with PVC cap, then fix a vent-pipe into it. Parameter ...
Elade is a professional rod anodes manufacturer with 30 years technical backgrouds, they can provide high quality rod anodes with longer lifespan. Elade Rod Anodes are manufactured using titanium substrate, which meets ASTM B348 Grade 1 or 2 standards,they have been coated with ...
MMO/Ti linear anode parameter: Item Parameters Model P/N ELTA-15(MMO/Ti Wire Anode 1.5mm Dia) ELTA-30(MMO/Ti Wire Anode 3mm Dia) Outer Dia. 38-40mm MMO/Ti wire anode Dia. 1.5mm,3mm Current output =52mA/m, customizable Designed life =40Y, customizable Cable 1×10mm2/ ...
The anodes are composed of titanium ribbon substrate coated with a mixed metal oxide catalyst. The anodes can achieve 50 years operating lifespan in a current density of 17mA/m. The mixed metal oxide anodes are designed for protecting the bottoms of many large-scale storage ...
Canister anodes consist of MMO/Ti (tubular, wire, rod , mesh) anode installed in a large metal canister that is filled with coke breeze backfill. Elade provide canister anodes whose core is in MMO tubular or wire anode wrapped with galvanized steel canister. The canister is ...
