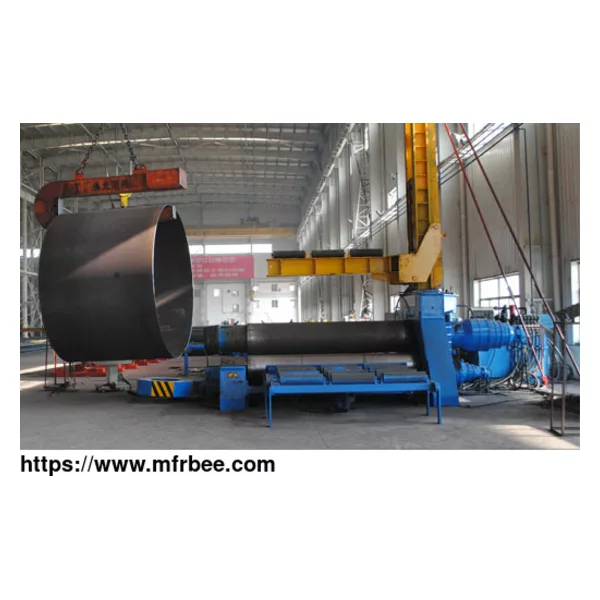

4 Rolls Plate Bending Machine

EZHONG

Material: 42CrMo alloy steel, quenching and tempering treatment makes the work roll strength reach HB241-260, comprehensive mechanical properties, high strength, strong wear resistance, suitable for high-load work, long service life. The lifting displacement is controlled by sensors and PLC, automatically leveled, and displayed on the screen.

4 roll plate roller machines with jaw weights of 20x2000mm, 60x4200mm, and 80x3000mm are widely welcomed by customers. With a high technical level, complete functions, high precision, and convenient operation, it is an ideal model for rolling round, arc, cone, and special-shaped workpieces.

Types Of4 Roller Plate Rolling Machine For Sale

80x3000mm4 Roll Plate Bending Machine



60x4200mm 4 Rolls Plate Bending Machine



20x2000mm 4 Rolls Plate Bending Machine



Working Principle Of 4 Rolls Plate Bending Machine

1

Very durable spherical roller bearings are used on each roller of four roller bending machines.

The product adopts the brand's spherical roller bearing on each roller so that it can well offset the pressure caused by the deviation of the shaft during the rotation of the roller.

Since each roller can move freely and flexibly, the risk of scratches and cracks on the roller is avoided.

2

The adjustable center bearing's internal4 roll plate bending machine design allows it to withstand the deflection and tilt of the roller rod. Foldable activity prevents the reverse force from damaging the roller when it is fixing the external force.

Advantage of this bearing: It can move smoothly and safely along the tilt table of the roller shaft and return to its original position finally no matter where the shaft has deviated. The relative requirements of the conical coil are much more demanding because it requires the roller shaft to be able to tilt, the load on the roller shaft is not well balanced.

3

It puts a lot of pressure on the bearing, and use of an adjustable center bearing can make this load enter the "axial" mode, which effectively control the influence of folding and can rotate on its own smoothly and safely.

4

Solution: Use two adjustable bearings on each roller shaft, so that our clients can enjoy the benefits of "permanent lubrication technology". And the bearings do not need to be frequently lubricated during the entire working life of the product.
