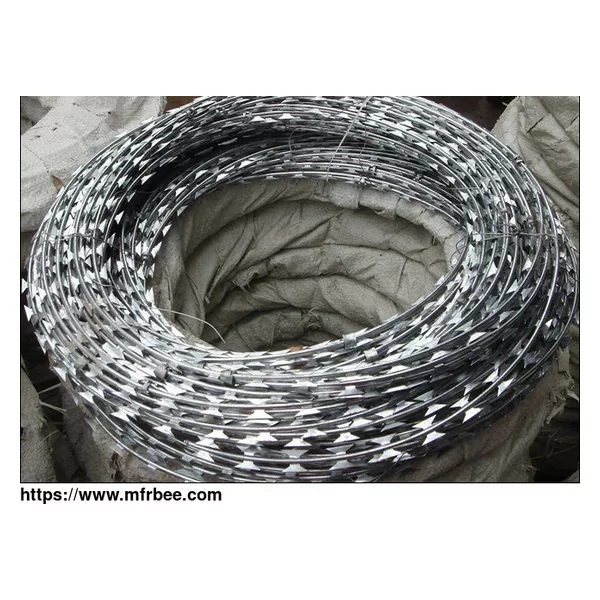

Concertina Wire
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Material - galvanized steel (wire min. Z70, blades min. Z180)
54-56 rolls per wire;
Blade type BTO-22
Style:Barbed Tape Concertina
Steel zinc plated, coil diameter 980mm, 54 loops, w/5 clips to each loop, maximum installed length 15 metre
Concertina wire is a type of barbed wire
Concertina wire packs flat for ease of transport, but can then be deployed as an obstacle much more quickly than ordinary barbed wire.
A platoon of soldiers can deploy a single concertina fence at a rate of about a kilometer per hour. Such an obstacle is not very effective by itself, and concertinas are normally built up into more elaborate patterns as time permits.
Concertina wire is sometimes mistakenly called constantine wire. "Constantine" probably came from a corruption/misunderstanding of "Concertina" and led to confusion with the Roman Emperor Constantine. This in turn has led to some people trying to differentiate between concertina wire and "constantine" wire by incorrectly assigning the latter term to what is commonly known as razor wire. In contrast to the double-helical construction of concertina wire, as shown being deployed by soldiers in the image, razor wire, or less correctly "constantine wire", consists of a single coil of wire with projecting teeth periodically along its length.
Concertina wire is supplied typically in single coils or crossed spiral coils. We can produce razor type barbed wire in concertina coils or straight lines. Blade types and specifications vary according to the customers’ requirements.
Concertina wire (coil) is made by stainless steel sheets and galvanized high tensile claps. It has a beautiful crossing outlook and it is suitable for uses after extending, making an ideal security fencing with great anti-climb and anti-cutting property.
Standard materials for razor type barbed wire
Main Application: Concertina wire (coil) is used as security fencing and isolation for gardens, residences, military sites and other sites requiring high security.
Hot Dipped Galvanized CBT-65 Razor Wire - Concertina Barbed Tape (CBT)
18" Diameter , 50FT coil lenght
Core Wire Material #45 steel
Wire Diameter 2.5+1mm
Blade thickness :0.06-0.05 mm
Blade lenght : 65+2mm
Blade width :21+1mm
Blade Sapcing:100+2mm
Weight : 4.2KG/roll
5 rolls/carton box-21kg/box
 |  |
 |  |
Specification Razor Blade Specification:
| Reference Number | Blade Style | Thick ness | Wire Dia | Barb Length | Barb Width | Barb spacing |
| BTO-12 |  | 0.5 ±0.05 | 2.5 ±0.1 | 10 ±1 | 13 ±1 | 26±1 |
| BTO-18 |  | 0.5 ±0.05 | 2.5 ±0.1 | 15 ±1 | 15 ±1 | 33±1 |
| BTO-22 |  | 0.5 ±0.05 | 2.5 ±0.1 | 22 ±1 | 15 ±1 | 34±1 |
| CBT-65 |  | 0.6 ±0.05 | 2.5 ±0.1 | 65 ±2 | 21 ±1 | 100±2 |
Barbed Tape Concertina (BTC);Barbed Tape Obstacle (BTO)
Standard materials are either galvanized or stainless steel.
Standard packages products are shown in the tables above, special specifications available on request.
Barbed Tape Wire Specification:
| Outside Diameter | No. of Loops | Standard Length per Coil | Type | Notes |
| 450mm | 33 | 8M | CBT-65 | Single coil |
| 500mm | 41 | 10M | CBT-65 | Single coil |
| 700mm | 41 | 10M | CBT-65 | Single coil |
| 960mm | 53 | 13M | CBT-65 | Single coil |
| 500mm | 102 | 16M | BTO-10.15.22 | Cross type |
| 600mm | 86 | 14M | BTO-10.15.22 | Cross type |
| 700mm | 72 | 12M | BTO-10.15.22 | Cross type |
| 800mm | 64 | 10M | BTO-10.15.22 | Cross type |
| 960mm | 52 | 9M | BTO-10.15.22 | Cross type |
- Country: China (Mainland)
- Business Type: Manufacturer
- Market:Africa,Americas,Asia,Emerging Markets,Europe,European Union,G20,Middle East,Oceania
- Founded Year:1998
- Address:No.68 ,Renxing Road, Dezhou, China.
- Contact:Li Zhixin
