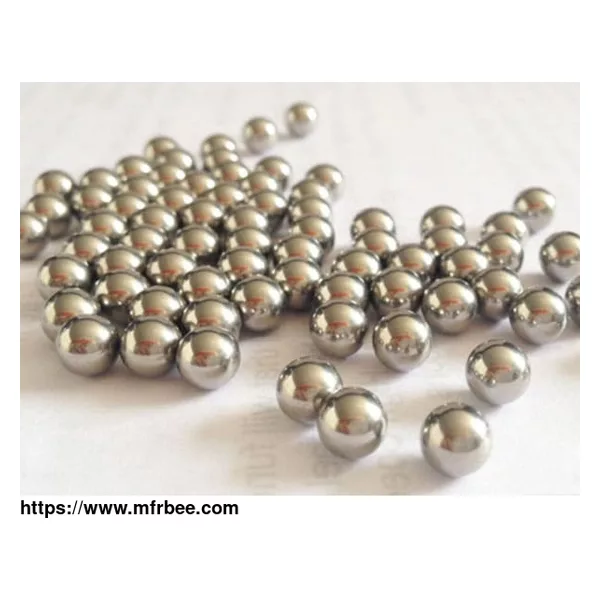

AISI 440c (9Cr18Mo) Stainless Steel Ball
- Packaging
- N/A
- Delivery
- N/A
Specifications
AISI440/440C Stainless steel ball
| Material Specification | C | Cr | Mn | Si | P | S |
|
| 0.90-1.0% | 17-19% | 0.8%Max | 0.8%Max | 0.035%Max | 0.03%Max |
|
|
|
Mechancial
Properties |
Tensile Strength | 275,000 psi | |||||
|
|
|
||||||
| Specific Weight | 0.280 Ibs/cu in | ||||||
|
Physical
Property |
Corrosion resistance | fair corrosion resistance | |||||
| Magnetic | Magnetic, Harden-able | ||||||
| Size Range | 2.381mm to 25.40mm | ||||||
| Hardness | HRC50-58 | ||||||
| Grade | G10- G1000 | ||||||
| Application | Type 420 balls are found in bearings, valves, lighters and writing instruments. | ||||||
|
Material
Conversion |
ASTM / AISI | YB | JIS | DIN | |||
| 440C | 3Cr13 | SUS420J2 | 1.4028 |
