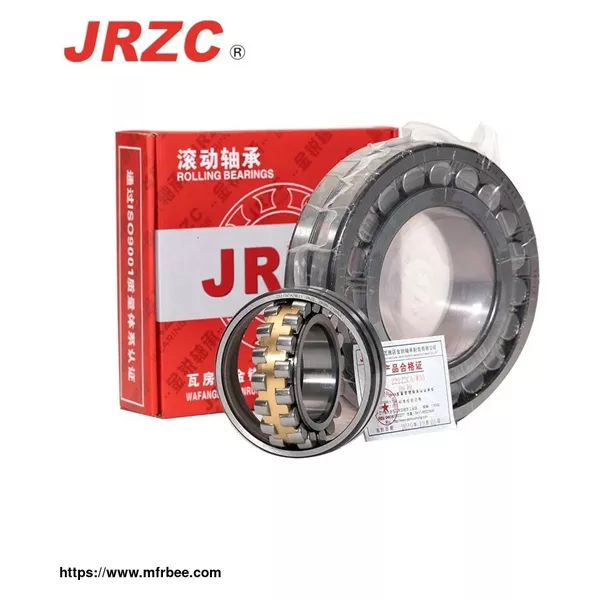

A spherical roller bearing is a rolling-element bearing that permits rotation with low friction, and permits angular misalignment. Typically these bearings support a rotating shaft in the [bore] of the inner ring that may be misaligned in respect to the outer ring. The misalignment is possible due to the spherical internal shape of the outer ring and spherical rollers. Despite what their name may imply, Spherical roller bearings are not truly spherical in shape. The rolling elements of spherical Roller bearings are mainly cylindrical in shape, But have a profile that makes them appear like cylinders that have been slightly over-inflated. Spherical roller bearing used in countless industrial applications, where there are heavy loads, moderate speeds and possibly misalignment.
Application:
Continuous Casting Machines Mechanical Fans and Blowers
Gearbox and Pumps Wind Turbines
Material Handling Marine Propulsion and Offshore Drilling
Mining and Construction Equipment Pulp and Paper Processing Equipment
Spherical Roller Bearing
Product Name | Spherical Roller Bearings 22209CA |
Precision Rating | P6, P0, P5, P4, P2 |
Material | Bearing Steel (GCr15) |
Clearance | C0 C1 C2 C3 C4 C5 |
Vibration & Noisy | Z1, Z2, Z3 V1, V2, V3 |
Cage | Brass, Nylon, Steel |
Seal | ZZ, 2RS |
Features | High Precision, High Speed, Long Life, High Reliability, Low Noise, Small Friction |
Certification | ISO 9001: 2008 |
Packing | 1. Neutral Packing Bearing 2. Industrial Packing 3. Commercial Packing Bearing 4. Customize |
Delivery Time | 30 - 45 Days After The Order is Confirmed |
Shippment | 1. By Sea 2. By Air 3. By Express |
Specifications of 22217 E Bearings Designations (Bearing with cylindrical bore) 22217 E Principal dimensions (mm) d 85 D 150 B 36 r1,2 2 Basic load ratings(KN) Basic load ratings (dynamic) (C) 276.45 Basic load ratings (static) (C0) 315.25 Fatigue load limit (Pu) 34.5 Speed ...
Specifications of 22217 EK Bearing Designations (Bearing with tapered bore) 22217 EK Principal dimensions (mm) d 85 D 150 B 36 r1,2 2 Basic load ratings(KN) Basic load ratings (dynamic) (C) 276.45 Basic load ratings (static) (C0) 315.25 Fatigue load limit (Pu) 34.5 Speed ...
Specifications of 22216 E Bearings Designations (Bearing with cylindrical bore) 22216 E Principal dimensions (mm) d 80 D 140 B 33 r1,2 2 Basic load ratings(KN) Basic load ratings (dynamic) (C) 228.92 Basic load ratings (static) (C0) 261.9 Fatigue load limit (Pu) 29 Speed ...
Specifications of 22216 EK Bearings Designations (Bearing with tapered bore) 22216EK Principal dimensions (mm) d 80 D 140 B 33 r1,2 2 Basic load ratings(KN) Basic load ratings (dynamic) (C) 228.92 Basic load ratings (static) (C0) 261.9 Fatigue load limit (Pu) 29 Speed ...
Specifications of 22215 EK Bearings Designations (Bearing with tapered bore) 22215EK Principal dimensions (mm) d 75 D 130 B 31 r1,2 1.5 Basic load ratings(KN) Basic load ratings (dynamic) (C) 205.64 Basic load ratings (static) (C0) 232.8 Fatigue load limit (Pu) 26.5 Speed ...
Specifications of 22212 E Spherical Roller Bearings Designations (Bearing with cylindrical bore) 22212E Principal dimensions (mm) d 60 D 110 B 28 r1,2 1.5 Basic load ratings(KN) Basic load ratings (dynamic) (C) 151.32 Basic load ratings (static) (C0) 161.02 Fatigue load limit ...
Specifications of 22211 E Bearings Designations (Bearing with cylindrical bore) 22211 E Principal dimensions (mm) d 55 D 100 B 25 r1,2 1.5 Basic load ratings(KN) Basic load ratings (dynamic) (C) 121.25 Basic load ratings (static) (C0) 123.19 Fatigue load limit (Pu) 13.7 Speed ...
Specifications of 22211 EK Bearings Designations (Bearing with tapered bore) 22211EK Principal dimensions (mm) d 55 D 100 B 25 r1,2 1.5 Basic load ratings(KN) Basic load ratings (dynamic) (C) 121.25 Basic load ratings (static) (C0) 123.19 Fatigue load limit (Pu) 13.7 Speed ...
Bearing Double Row The rollers of two-row cylindrical roller bearings are crossing arranged. While rotating, the wave ratio is one time higher than single-row cylindrical roller bearings. However, the vibration ratio decreases 70%. And due to its two-row roller arrangement, ...
Cylindrical Roller Thrust Bearing Cylindrical roller thrust bearings consist of rollers, cage components, shaft ring and housing ring. Those components are separable which makes the washing, assembling,disassembling, inspection and maintenance convenient and efficient. They ...
