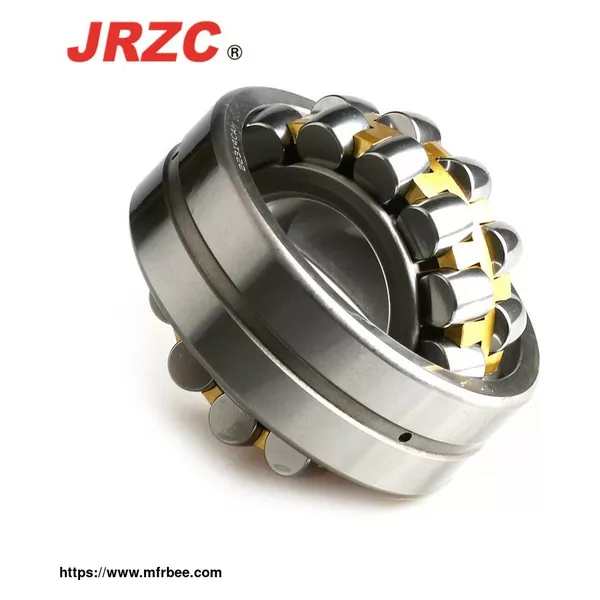

Spherical roller bearings are bearings with drum-shaped rollers assembled between the inner ring with two raceways and the outer ring with spherical raceways. Spherical roller bearings have two rows of rollers,
which mainly bear radial load, but can also bear axial load in any direction. With high radial load capacity, it is especially suitable for working under heavy load or vibration load, but it cannot bear pure axial load. The outer ring raceway of this type of bearing is spherical, so its alignment performance is good, and it can compensate for coaxiality errors.
Specifications of 22217 E Bearings Designations (Bearing with cylindrical bore) 22217 E Principal dimensions (mm) d 85 D 150 B 36 r1,2 2 Basic load ratings(KN) Basic load ratings (dynamic) (C) 276.45 Basic load ratings (static) (C0) 315.25 Fatigue load limit (Pu) 34.5 Speed ...
Specifications of 22217 EK Bearing Designations (Bearing with tapered bore) 22217 EK Principal dimensions (mm) d 85 D 150 B 36 r1,2 2 Basic load ratings(KN) Basic load ratings (dynamic) (C) 276.45 Basic load ratings (static) (C0) 315.25 Fatigue load limit (Pu) 34.5 Speed ...
Specifications of 22216 E Bearings Designations (Bearing with cylindrical bore) 22216 E Principal dimensions (mm) d 80 D 140 B 33 r1,2 2 Basic load ratings(KN) Basic load ratings (dynamic) (C) 228.92 Basic load ratings (static) (C0) 261.9 Fatigue load limit (Pu) 29 Speed ...
Specifications of 22216 EK Bearings Designations (Bearing with tapered bore) 22216EK Principal dimensions (mm) d 80 D 140 B 33 r1,2 2 Basic load ratings(KN) Basic load ratings (dynamic) (C) 228.92 Basic load ratings (static) (C0) 261.9 Fatigue load limit (Pu) 29 Speed ...
Specifications of 22215 EK Bearings Designations (Bearing with tapered bore) 22215EK Principal dimensions (mm) d 75 D 130 B 31 r1,2 1.5 Basic load ratings(KN) Basic load ratings (dynamic) (C) 205.64 Basic load ratings (static) (C0) 232.8 Fatigue load limit (Pu) 26.5 Speed ...
Specifications of 22212 E Spherical Roller Bearings Designations (Bearing with cylindrical bore) 22212E Principal dimensions (mm) d 60 D 110 B 28 r1,2 1.5 Basic load ratings(KN) Basic load ratings (dynamic) (C) 151.32 Basic load ratings (static) (C0) 161.02 Fatigue load limit ...
Specifications of 22211 E Bearings Designations (Bearing with cylindrical bore) 22211 E Principal dimensions (mm) d 55 D 100 B 25 r1,2 1.5 Basic load ratings(KN) Basic load ratings (dynamic) (C) 121.25 Basic load ratings (static) (C0) 123.19 Fatigue load limit (Pu) 13.7 Speed ...
Specifications of 22211 EK Bearings Designations (Bearing with tapered bore) 22211EK Principal dimensions (mm) d 55 D 100 B 25 r1,2 1.5 Basic load ratings(KN) Basic load ratings (dynamic) (C) 121.25 Basic load ratings (static) (C0) 123.19 Fatigue load limit (Pu) 13.7 Speed ...
Bearing Double Row The rollers of two-row cylindrical roller bearings are crossing arranged. While rotating, the wave ratio is one time higher than single-row cylindrical roller bearings. However, the vibration ratio decreases 70%. And due to its two-row roller arrangement, ...
Cylindrical Roller Thrust Bearing Cylindrical roller thrust bearings consist of rollers, cage components, shaft ring and housing ring. Those components are separable which makes the washing, assembling,disassembling, inspection and maintenance convenient and efficient. They ...
