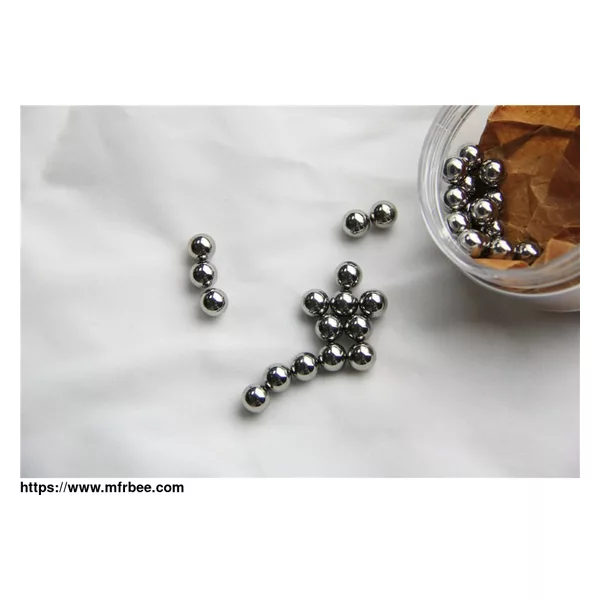

3.175mm G100 316 stainless steel ball
- Packaging
- N/A
- Delivery
- N/A
Specifications
Material characteristic: Austenitic stainless steel balls with higher corrosion resistance than AISI 304 balls. They show good toughness. AISI 316L has a lower carbon content (maximum 0,030%). Balls are provided in the passivated condition.
Very good corrosion resistance with respect to organic substances, good resistance to several strong acids (acetic, phosphoric, sulphuric acid) and on sea water. They are subjected to pitting and crevice corrosion in presence of hot chloride solutions and to stress corrosion when temperature exceeds 60°C. They do not resist in contact with hydrochloric and hydrofluoric acids, aqua regia, iron and magnesium chlorides.
Application: photographic devices, medical instruments, quick couplings, recirculating balls, ink cartridges, jewels,Special bearings, pumps and valves, aerosol and dispenser
sprayers. Utilised in the foodstuff, paper, chemical, rubber, military, textile industry
Marketing Area: Asia, North America, Europe, South America
| Product |
3.175mm 1/8 inch G100 316 stainless steel ball for aerosol and dispenser sprayers |
| Material | Stainless Steel 316 |
| Grade | G100-G1000 |
| Surface | Zero defect,clear |
| size | 2.381-12.7mm |
| Sample | Free sample |
| Certification | ISO 9100;2008SGS |
| Packing | boxes,carton,wood pallet |
| AISI 316 & 316L Stainless Steel | |||||||||
| Materials Standard | Chemmical Composition (%) | Hardness (HRC measured on parallel flats) | |||||||
| C | SI | Mn | P | S | Ni | Cr | Mo | ||
| AISI 316L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.03 | 12-15 | 16-18 | 2.0-3.0 | HRC≤26 |
| AISI 316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.03 | 10-14 | 16-18 | 2.0-3.0 | |
| Size：2.381-12.7mm Precision Grade: G100-G1000 |
