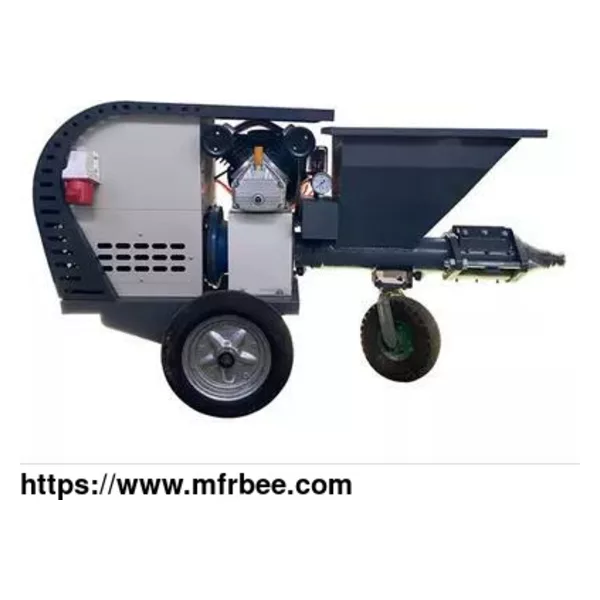

Mortar Spraying Machine
The mortar spraying machine has the advantages of simple operation, no scaffold, mobile equipment and stubble repair. The internal and external corners and roof can be sprayed freely, which not only shortens the construction period, improves the progress, but also saves the expenses of scaffold materials.
Suitable spraying materials: putty powder, coating, emulsion paint, real stone paint, cement mortar, dry powder mortar, thermal insulation mortar, waterproof material, fireproof material, thermal insulation material, sound-absorbing material and other water-soluble materials.
Specification:
project | parameter |
Product model | 711 mortar spraying machine |
pressure | 3-6Mpa |
Cement conveying height | 25m |
Concrete particle size | ≤7mm |
Conveying efficiency | 300m2/h |
Power | 7.5kw |
weight | 320kg |
Voltage | 380v |
project | parameter |
Product model | 511 mortar spraying machine |
pressure | 5Mpa |
Cement conveying height | 25m |
Concrete particle size | <4mm |
Conveying efficiency | 300m2/h |
Power | 7.5kw |
weight | 240kg |
Voltage | 380v |
project | parameter |
Product model | 411 mortar spraying machine |
pressure | 3-6Mpa |
Cement conveying height | 15m |
Concrete particle size | ≤4mm |
Conveying efficiency | 150m2/h |
Power | 4kw |
weight | 150kg |
Voltage | 220/380v |
project | parameter |
Product model | 311 mortar spraying machine |
pressure | 3Mpa |
Cement conveying height | 15m |
Concrete particle size | <4mm |
Conveying efficiency | 200m2/h |
Power | 4kw |
weight | 220kg |
Voltage | 380v/220v |
project | parameter |
Product model | Plunger mortar spraying machine |
Cement conveying height | 40m |
Concrete particle size | ≥7mm |
Conveying efficiency | 400m2/h |
Power | 11kw |
Dimensions | 2000×760×1000m |
Voltage | 380v |
