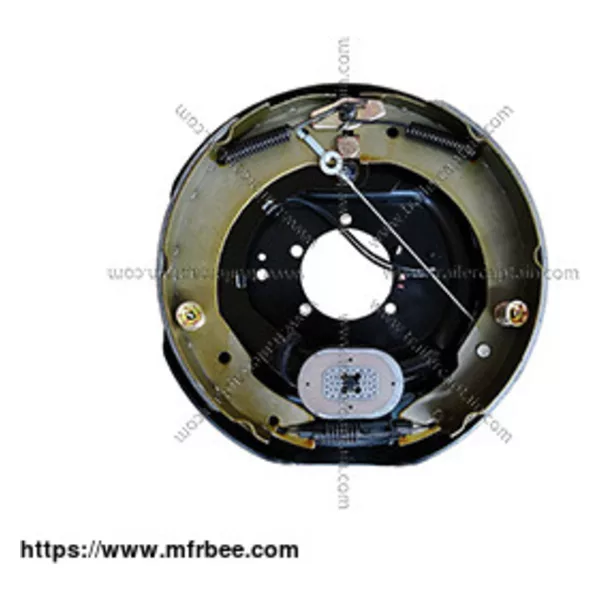

12" x 2" Trailer Self-Adjusting Electric Brake Assembly

Self-adjusting 12\" trailer drum brakes is a very nice design for trailer brake system. Al-KO call it Nev-R-Adjust. With the fine-tooth adjuster, with the adjuster cable, self adjusting electric brake assembly will adjust the distance between brake lining and trailer brake kit drum.

Features

l 12 inch electric brake assembly is easy to install and control.

l 12 inch x 2 inch trailer electric backing plate is electrophoretic-coated.

l Needs only an electric brake controller to work.

l No need manual adjustment.

l Self-adjusting 12 inch trailer brakes can work with most electric brake trailer axle 6000 lbs including Dexter, Hayes and many others.

Specifications

Ø Dimension: 12 inch x 2inch

Ø Axle Capability: 6000 lbs Axle

Ø Mounting Flange Bolt Pattern: 5 bolts

Ø Brake Fit: Left Hand / Driver Side / LH, Right Hand / Passenger Side / RH

Product Composition

Ø 12” x 2\" Brake Shoe Set x 1

Ø E-coat Backing Plate x 1

Ø Black/white wire Magnet x 1

Ø Magnet Lever x 1

Ø Adjust cable x 1

Ø Springs x 2

Ø Adjuster x 1
