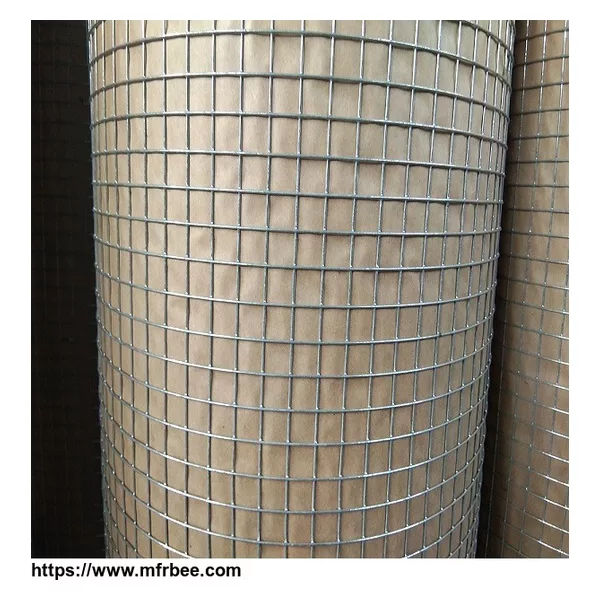

welded wire mesh
Product Quick Detail
- Place Of Origin
- china
- Price
- 3
- Minimum Order
- 100
- Packaging
- proof paper
- Delivery
- 15 Days
Specifications
5/8" × 5/8", Wire Gauge 18, 19, 20, 21;
3/4" × 3/4", Wire Gauge 16, 17, 18, 19, 20, 21;
1" × 1/2", Wire Gauge 16, 17, 18, 19, 20, 21;
1-1/2" × 1-1/2", Wire Gauge 14, 15, 16, 17, 18, 19;
1" × 2", Wire Gauge 14,15, 16;
2" × 2", 12, 13, 14, 15, 16.
| Mesh inch | Width length | Weight |
| 1/2 | 3ft. × 50ft. | 8.25kg/roll |
|
1/2 1/2 1/2 3/4 |
4ft. × 50ft. 5ft. × 50ft. 6ft. × 50ft. 3ft. × 50ft. |
11kg/coil 13.75kg/coil 16.5kg/coil 15kg/coil |
| 3/4 | 4ft. × 50ft. | 20kg/coil |
|
3/4 3/4 1 |
5ft. × 50ft. 6ft. × 50ft. 3ft. × 50ft. |
25kg/coil 30kg/coil 20kg/coil |
| 1 | 5ft. × 50ft. | 30kg/coil |
| 1 | 4ft. × 50ft. | 25kg/coil |
| 1 | 6ft. × 50ft. | 35kg/coil |
| Cold zinc welded wire mesh | Cold galvanized welded mesh |
| 25mm × 12mm × 0.87mm × 1m × 30m 16.00kgs | 25mm × 12mm × 0.87mm × 1m × 30m 16kg |
| 12mm × 12mm × 0.87mm × 1m × 30m 21.00kgs | 12mm × 12mm × 0.87mm × 1m × 30m 21kg |
| 25mm × 25mm × 0.5mm × 1m × 50m 6.00kgs | 25mm × 25mm × 0.5mm × 1m × 50m 6.00kg |
| 12mm × 12mm × 0.5mm × 1m × 30m 7.00kgs | 12mm × 12mm × 0.5mm × 1m × 30m 7.00kg |
- Country:
- Business Type:
- Market:
- Founded Year:
- Address:
- Contact:jennifer liu
