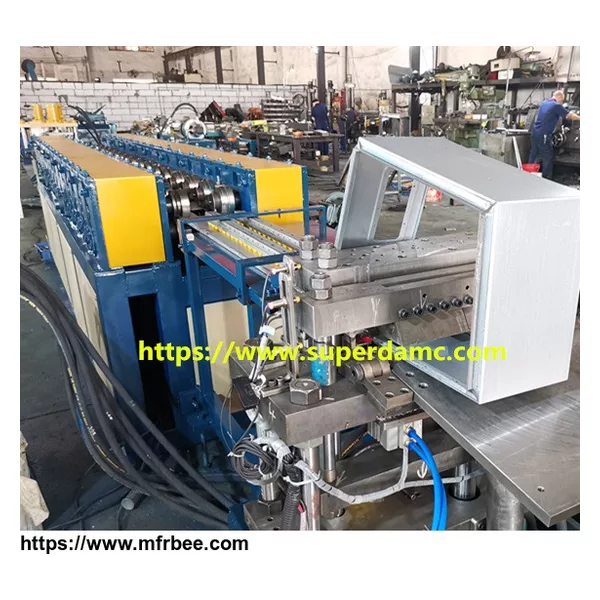

Electric box production line
1.Details of accessory brand
No. | Name | manufacturer |
1 | Encoder | Omron |
2 | Touch Screen | Mitsubishi |
3 | Programmable controller (PLC) | Mitsubishi |
4 | Low-voltage circuit breaker | Chint |
5 | AC contactor | Chint |
6 | Inverter | Mitsubishi |
7 | Hydraulic Solenoid Valve | Shun Xin, Taiwan |
8 | Guide rail | Hiwin Taiwan |
9 | Server System | Mitsubishi |
https://www.superdamc.com
2.Feeding specifications
a. Applicable materials: cold rolled coil, galvanized coil
b. Material quality: Domestic GB standard
c. Tensile strength: δb≤780Mpa (Max.)
d. Yield strength: δs≤510Mpa (Max.)
e. Material thickness: 1.0-1.5mm
f. Material width: 200-450mm (Max.)
g. Inner diameter of steel coil: Φ360mm-Φ510mm
h. Outside diameter of steel coil: Φ1250 (Max.)
i. Steel coil weight: 3 t (Max.)
3.Forming parameters
a. Number of forming staion: 16 sets of roller
b. Spindle specification: Ø48mm 40Gr quenching and tempering
c. Roller material: Gr12 mold steel heat treatment
d. Integral archway: precision machined from 25mm steel plate, the hole distance error is less than 0.1mm
e. Base plate thickness: 20mm
4, forming ability
a. Outside diameter of coil: Φ1250mm (Max.)
b. Material forming thickness: 1.0-1.5mm
c. Product width 160mm-400mm adjustable
5.Speed parameters of forming unit
a. Linear speed 0-13m / min
b. Acceleration time < 30 seconds
6, Forming accuracy
a. Shear length tolerance: ≤ ± 0.5mm / m
b. Width tolerance: ≤ ± 0.5mm
c. Sickle curve: ≤2mm / m
d. Burr: ≤0.1mm (new blade cutting ordinary carbon steel plate with reasonable clearance)
e. Height tolerance: ≤ ± 0.5mm
The above tolerances are based on the first-grade steel coils with flat and edgeless waves.
Electric Cabinet Frame Roll Forming Machine Item:YX120-30.7 Technical parameters Item Technology parameter Material Material cold-roll strip,galvanized steel strip Thickness 1.2mm Coil Inner Ф360—Ф510 Process Form Speed 0-13m/min Length Not limit Quality Length Precision ...
1, Fire hose cabinet production line No. ITEM PARAMETER REMARK 1 MATERIAL Type Cold-rolled strip steel, galvanized sheet T.(mm) 0.8-1.5mm Yield Strength (Mpa) Q235 2 Forming product Width Customized 3 Forming speed (m/min) 6-13m Including hole 4 Forming main power (KW) 7.5 KW ...
Wall mounted steel enclosure & distribution box door panel roll forming machine production line for electric box outdoor indoor cabinet panel forming and enclosure bending. 1, Steel enclosure production line technical parameters No. ITEM PARAMETER REMARK 1 MATERIAL Type ...
Superda electrical box roll forming machine production line for making distribution board, recessed metal board, electrical panel board, control panels, embedded metal cabinet equipment. https://www.superdamc.com Electric box production line 1.Details of accessory brand No. Name ...
