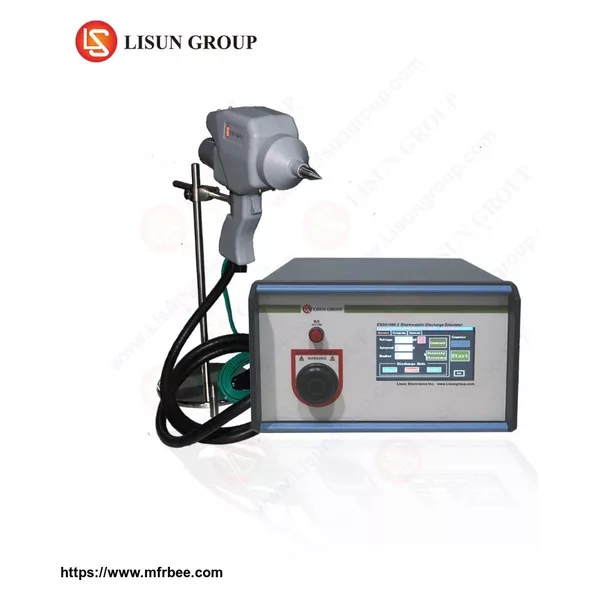

ESD simulator
Specifications:
Product Model | ESD61000-2 | ESD61000-2A |
Output Voltage | 0.1~20kV±5% | 0.1~30kV±5% |
Polarity | Positive/Negative | Positive/Negative |
Energy Storage Capacitance | 150pF±10% (Replaceable) | 150pF±10% (Replaceable) |
Discharge Resistor | 330Ω±5% (Replaceable) | 330Ω±5% (Replaceable) |
Current Rise Time | 0.6~1ns | 0.6~1ns |
Testing Functions | Single, Count, 20pps, Air, Contact, IEC level | Single, Count, 20pps, Air, Contact, IEC level |
Trigger Mode | MANUAL/AUTO | MANUAL/AUTO |
Numbers of Discharge | 1~9999 | 1~9999 |
Repetition | 0.05s~99.99s | 0.05s~99.99s |
Working Power | AC220V (Option 110V) ±10%, 50/60Hz | AC220V (Option 110V) ±10%, 50/60Hz |
Calibrate Report:
Output Voltage (kV) | First Peak Current (A) | Current at 30ns (A) | Current at 60ns (A) | Rise Time (ns) |
2 | 7.29 | 4.10 | 2.20 | 0.93 |
4 | 15.40 | 7.90 | 4.30 | 0.97 |
6 | 23.20 | 12.10 | 6.50 | 0.97 |
8 | 29.40 | 16.20 | 9.30 | 0.89 |
-2 | 7.39 | 3.50 | 2.30 | 0.92 |
-4 | 15.50 | 7.70 | 4.30 | 0.89 |
-6 | 23.40 | 11.90 | 6.30 | 0.90 |
-8 | 31.80 | 16.10 | 8.20 | 0.90 |
We suggest you choose LISUN ESD Simulator Test Desk to work with ESD61000-2:
Waveform:
It is according to GB4706.1, IEC/EN60335-1, UL60335, GB7000, IEC60598, GB4943, IEC60950 and GB9706.1. The testing parameters include: AC/DC Withstanding voltage, Insulation Resistance, Leakage Current and Ground Resistance ...
According to IEC61000-4-2, EN61000-4-2 and GB/T17626.2. Output voltage is 0~20KV. Contact and Air Discharges test mode. The big LCD screen can be touched to operate ...
ESD simulator Specifications: Product Model ESD61000-2 ESD61000-2A Output Voltage 0.1~20kV±5% 0.1~30kV±5% Polarity Positive/Negative Positive/Negative Energy Storage Capacitance 150pF±10% (Replaceable) 150pF±10% (Replaceable) Discharge Resistor 330Ω±5% (Replaceable) ...
ESD simulator (Electrostatic Discharge Generator or Electrostatic Gun) is in full compliance with IEC 61000-4-2, EN61000-4-2, ISO10605, GB/T17626.2, GB/T17215.301 and GB/T17215.322. The ESD generator is designed for the assessment of electrical and electronic equipment to ...
Product Description ESD simulator (Electrostatic Discharge Generator or Electrostatic Gun) is in full compliance with IEC 61000-4-2, EN61000-4-2, ISO10605, GB/T17626.2, GB/T17215.301 and GB/T17215.322. The ESD generator is designed for the assessment of electrical and ...
