LSG-1890BCCD/LSG-1800ACCD goniospectroradiometer is high precision automatic goniophotometric instrument for luminous intensity distribution measurement with facility for rotating the light source. The LSG-1890BCCD/LSG-1800ACCD can do the spatial CCT test and the intensity distribution test. It is for industrial laboratory photometric data measurement of luminaires such as LED luminaires, LED Plant Lighting, HID luminaires, fluorescent lamps and so on.

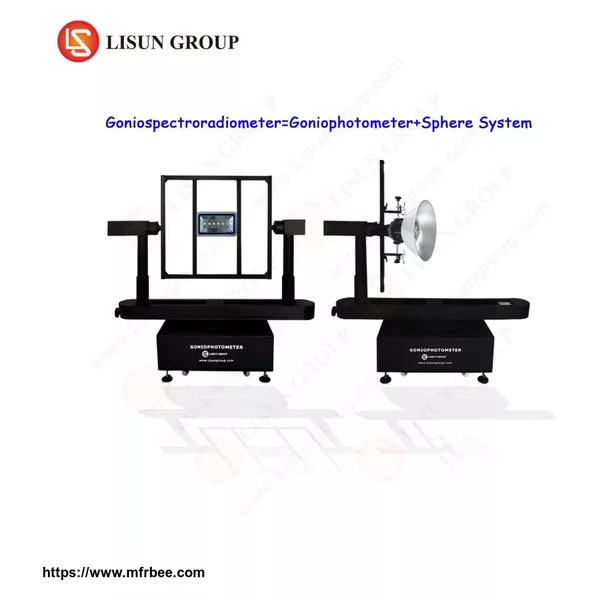

[caption id="attachment_6269" align="aligncenter" width="1920"]High Precision Rotation Luminaire Goniospectroradiometer[/caption] Standard:
Full meet theEN13032-1
Measurement:
Luminous Intensity Data, Luminous Intensity Distribution, Zonal Luminous Flux, Luminaries Efficiency, Luminance Distribution, Coefficient Of Utilization, Luminance Limitation Curves Glare, Maximum Ratio of Distance to Height, Equal Illuminance Diagrams, Curves of Luminaires VS Lighting Area, Isocandela Diagrams, Efficient Luminescence Angle, EEI, UGR, CCT, CRI, Color Temperature Distribution, Spectrum, (x, y)/(u, v), PAR, PPF, PPFD 3D distribution test and etc.
Specification:
• LSG-1890BCCD/LSG-1800ACCD Goniospectroradiometer=LSG-1890B/LSG-1800A Goniophotometer System
LISUN Model | The Max Size for the Luminaires Under Test | Max Weight | |
Non-Flood Lamp Diameter*Depth | Flood Lamp (L*M) | ||
LSG-1890BCCD | Φ 1900*550mm | 600*600mm | 60Kg |
LSG-1800ACCD | Φ 1600*550mm | 600*600mm | 50Kg |
Note: The LSG-1890BCCD is an update version for LSG-1800BCCD and LSG-1800XCCD. The LSG-1800ACCD is an update version for LSG-1700BCCD and LSG-1800CCD.
Measure intensity distribution curve in 3D, export IES files for DiaLux and Spatial color & spectrum. Applicated with Japanese motor, German Angle Coder and Constant Temperature Detector. Test all luminaires up to 2m and ...
