High Precision Rotation Luminaire Goniophotometer
Product Quick Detail
- Place Of Origin
- Shanghai
- Minimum Order
- 1
- Packaging
- Wooden cases
- Delivery
- 15 Days
Specifications

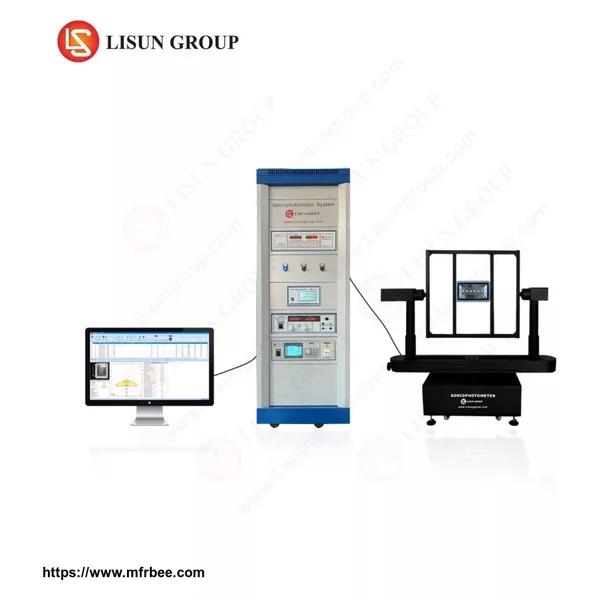

LSG-1890B/LSG-1800Agoniophotometer

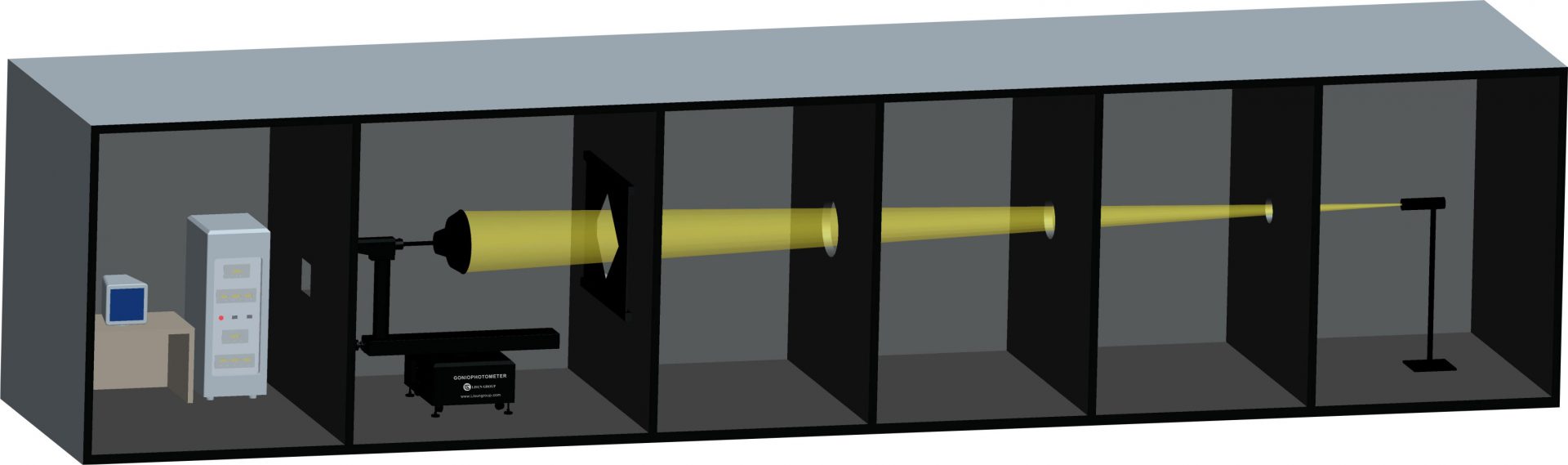

[caption id="attachment_6255" align="aligncenter" width="1920"]
High Precision Rotation Luminaire Goniophotometer[/caption] Standard:
Full meet theEN13032-1
Specification:
• The goniophotometer can do the B-β test with two pillars and the C-γ test with single pillar & multi-function jigs
• Test Max Luminaires size and weight: LSG-1890B is 1900mm/60kg and LSG-1800A is 1600mm/50kg
• The tested luminaries rotates around an angle of (γ)±180°(or 0-360°) and the tested luminaries rotates around itself with an angle of (C)±180°(or 0-360°)
• Luminosity Testing Range:Illuminance
| LISUN Model | The Max Size for the Luminaires Under Test (Unit: mm ) | Max Weight | |
| C-Gamma Test with one Pillar | B-Beta Test with Two Pillars | ||
| LSG-1890B | Φ 1900*550 (Diameter*Depth) | 600*600 (Length*Width) | 60Kg |
| LSG-1800A | Φ 1600*550 (Diameter*Depth) | 600*600 (Length*Width) | 50Kg |
Note: The LSG-1890B is an update version for LSG-1800B and LSG-1800X. The LSG-1800A is an update version for LSG-1700B and LSG-1800.
- Country: China (Mainland)
- Business Type: Our main products are Goniophotometer, Spectrophotometer, Integrating Sphere, Photometer and Colorimeter, LED Test Instruments, CFL Test Instruments, EMC Testing, Electronic Ballast Tester, Equipments For Testing Electronic Components, Electrical Safety Te
- Market:Oceania,Europe,Asia,G20
- Founded Year:2003
- Address:113-114, No. 1 Building, Nanxiang Zhidi Industry Park, No. 1101, Huyi Road, Jiading District, Shanghai, 201802, China
- Contact:Tracy Yu
