Electrical Distribution Board Roll Forming Machine Production

FOB Price
USD $71,000.00 / Piece
Place Of Origin
China
Minimum Order
1
Packaging
Container
Delivery
66Days

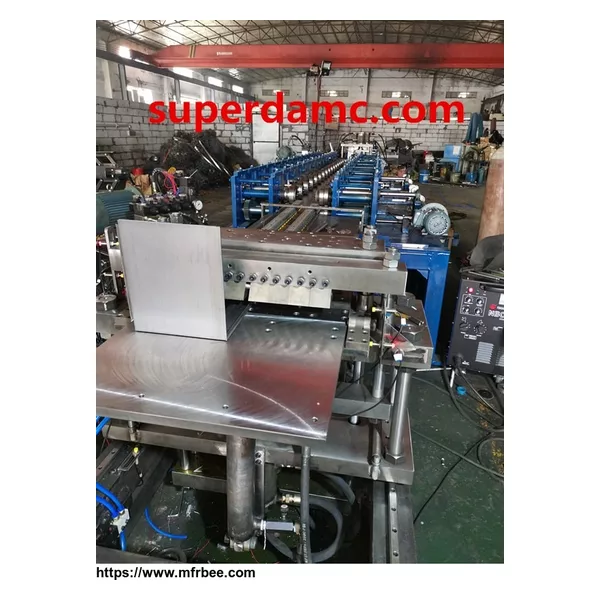

Superda electrical box roll forming machine production line for making distribution board, recessed metal board, electrical panel board, control panels, embedded metal cabinet equipment.
https://www.superdamc.com

Electric box production line

1.Details of accessory brand

No. Name manufacturer
1 Encoder Omron
2 Touch Screen Wienview
3 Programmable controller (PLC) Mitsubishi
4 Low-voltage circuit breaker Chint
5 AC contactor Chint
6 Inverter Mitsubishi
7 Hydraulic Solenoid Valve Shun Xin, Taiwan
8 Guide rail Hiwin Taiwan
9 Server System Mitsubishi


2.Feeding specifications

a. Applicable materials: cold rolled coil, galvanized coil

b. Material quality: Domestic GB standard

c. Tensile strength: δb≤780Mpa (Max.)

d. Yield strength: δs≤510Mpa (Max.)

e. Material thickness: 1.0-1.5mm

f. Material width: 200-450mm (Max.)

g. Inner diameter of steel coil: Φ360mm-Φ510mm

h. Outside diameter of steel coil: Φ1250 (Max.)

i. Steel coil weight: 3 t (Max.)

3.Forming parameters

a. Number of forming staion: 16 sets of roller

b. Spindle specification: Ø48mm 40Gr quenching and tempering

c. Roller material: Gr12 mold steel heat treatment

d. Integral archway: precision machined from 25mm steel plate, the hole distance error is less than 0.1mm

e. Base plate thickness: 20mm

4, forming ability

a. Outside diameter of coil: Φ1250mm (Max.)

b. Material forming thickness: 1.0-1.5mm

c. Product width 160mm-400mm adjustable

5.Speed parameters of forming unit

a. Linear speed 0-13m / min

b. Acceleration time < 30 seconds

6, Forming accuracy

a. Shear length tolerance: ≤ ± 0.5mm / m

b. Width tolerance: ≤ ± 0.5mm

c. Sickle curve: ≤2mm / m

d. Burr: ≤0.1mm (new blade cutting ordinary carbon steel plate with reasonable clearance)

e. Height tolerance: ≤ ± 0.5mm

The above tolerances are based on the first-grade steel coils with flat and edgeless waves.

7.Other equipment parameters

a. Power supply: 380V / 50HZ / 3PH (Or Custmized)

b. Installed capacity: about 32Kw

c. Forming speed: 0-13m / min

d. Cutting method: forming then cutting

e. Driving motor:

Straightener machine motor 2.2KW

Hydraulic punching 15kw,bending and cutting 5.5KW

Forming host motor 7.5KW

Servo motor 2KW

f. Floor area (approximately): length 30m × width 3m

(Roll Forming 7mX1.5m)

g. Production line direction: from left to right

(facing the unit from the operation table).

h. Equipment color: (Customer choice)

i. Unit equipment design can meet 12 hours of continuous production

j. Operating environment:

1: power supply voltage: 380V ± 10% / three-phase four-wire, frequency: 50HZ total power: about 32KW

2: Ambient temperature: 0-40 ° C, relative humidity: 60-95% RH.
