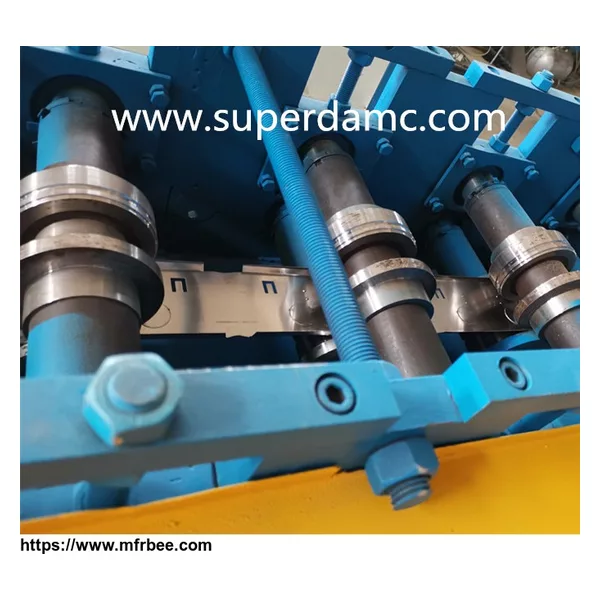

Metal roll forming machine production line making illumination wall mounted box dimension.
Push bottom box length is adjustable from 200-600mm, the width is 190mm, and the depth is 80mm. The actual cross-section of the product provided by the customer.
https://www.superdamc.com
1, Flush mounted box production line technical parameters
No. | ITEM | PARAMETER | REMARK | |
1 | MATERIAL | Type | Cold-rolled strip steel, galvanized sheet | |
T.(mm) | 0.5-0.7mm | | ||
Yield Strength (Mpa) | Q235 | | ||
2 | Forming product Width | Customized | | |
3 | Forming speed (m/min) | 4-8m | Including hole | |
4 | Forming main power (KW) | 7.5 KW | FYR | |
5 | Hydraulic power (KW) | 18.5 KW | FYR | |
6 | Bending power (KW) | 3 KW | FYR | |
7 | Voltage | AC380V,50Hz,3P | |
Metal roll forming machine production line process
Uncoiler →Straightening→servo feeder→Hydraulic press breach device → Guide device → roll forming machine → hydraulic punch →shear device (including knife)→ finished product rack
