Materia: High carbon steel wire.
Surface treatment: Hot dipped galvanized, zinc-aluminum coated.
Zinc thickness: No less than 150 g/m2.
Wire diameter: 3 mm, 4 mm.
Mesh type: Rhomboid hole.
Mesh size : 65 mm inscribed circle diameter.
Tensile strength: Minimum 1770 MPa.
Braking load of single wire: 12.5 kN.
Mesh roll width: 1–3.5 m.
Mesh roll length:10–30 m.

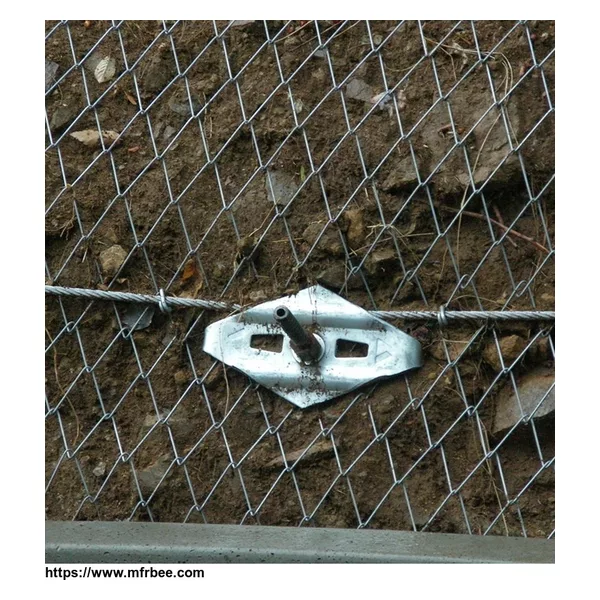

Fitting : Steel anchor, claw type spike plate, soil or rock nails, clips, sewing rope, boundary rope. (The steel anchor is made of deformed steel bar of 25 mm diameter)
Slope Protection Rope Mesh - Adapts to Any Slope Terrain Slope protection rope mesh is mainly used to prevent rocks from falling onto roads, railways and other structures. Besides, it can prevent various slope geological disasters, such as snow slide, slope erosion and flying ...
Slope protection rope mesh is mainly used to prevent rocks from falling onto roads, railways and other structures. Besides, it can prevent various slope geological disasters, such as snow slide, slope erosion and flying rocks. Slope protection rope mesh is made up of two ...
Cross clamps combine stainless steel ropes together to form strong and firm slope protection rope mesh. The slope protection rope mesh can make the rocks fall to the foot of the slope. Slope protection rope mesh can prevent the rocks from falling onto railway. Thus, it ensures ...
all sizes:many kinds Model Number:yy Brand Name:yihao Place of Origin:Hebei China (Mainland) Flexible Slope Protection Mesh SNS can be divided into active protection system and passive protection system. ...
