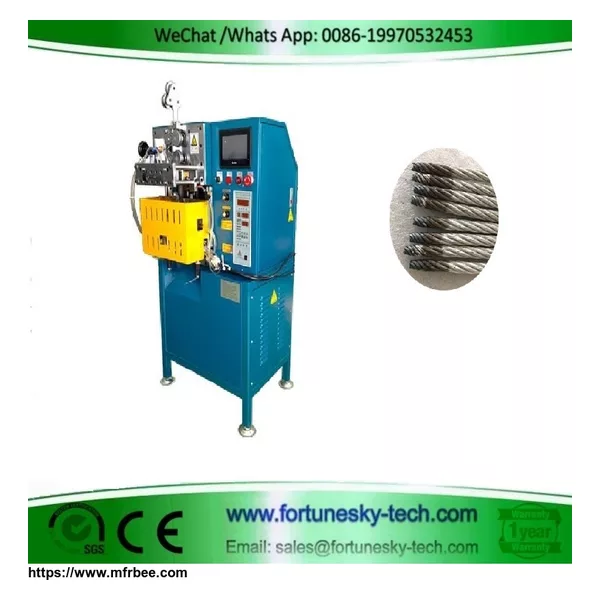

Automatic galvanised wire rope cutter sealer, its design is mainly aimed at problem from production and processing industries that a variety of lead-sealed wire
rope,wire rope lock, sealing wire rope, blockade and so on batches of wire ropes after fusing, grinding and resolving the unstable quality of manual processing, a variety of processes, and
increasingly serious labor difficulties, this fully automatic equipment can help save human labor, simplify the processing procedures, to reduce production costs and increase production capacity,
multiple machines can be managed by one person at the same time.
This equipment is widely used in medical equipment, auto parts, construction safety, office furniture, bicycles, sports equipment, locks and other industries. The high-precision touch-type
computer control system makes the setting and changing of the fuse conditions easy, and good fuse quality can be obtained.
Main technical requirements and instructions
1. The wire rope of the wire rope having a diameter of 1-5 mm which can be completed by the fuse machine.The equipment adopts the stepper motor (8mm above adopt servo motor) to ensure the fuse length is accurate,the melting section is conical,the largest circular surface diameter of the conical surface is smaller than the diameter of the steel wire,and the melting section is not scattered.it is quick and convenient to change the fuse length by using the touch screen.
2. Size requirements for wire rope and fuse:
A.The fuse material is a wire rope with no cotton inside.
B.The wire rope diameter is required to be 1-5mm (requires replacement of the clamping die).
C.The maximum wire diameter that can be blown is 5mm and the length is not limited. (If larger diameter material processing is required, it needs to be customized separately).
D.The fuse length size can be touched on the touch screen by the “Total Length”display box,pop-up digital setting keyboard and the length can be set arbitrarily.
E.Wire break accuracy is approximately +/-0.060 inch- +/-0.500 inch.
3. Feature:
Voltage:380V+220V
Air Source:0.4MPa
Size:80x80x150cm
Wire Diameter:1-5mm
Cutting Length:10cm To 30m
Lanuage:English/Chinese
