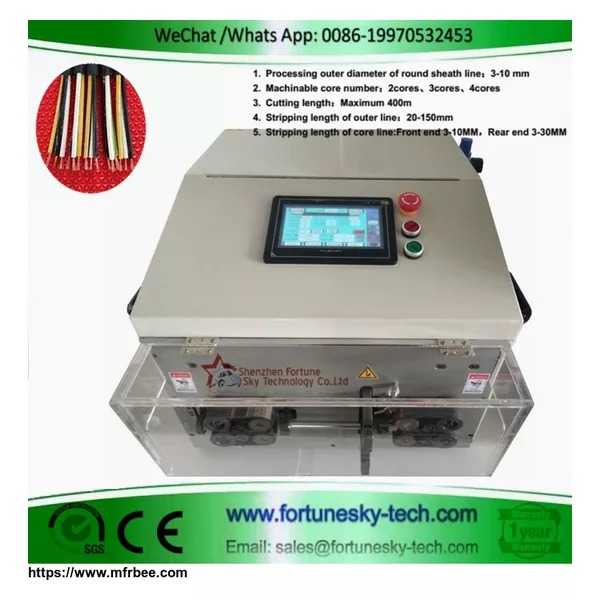

Automatic H05VV-F Multi Conductor Cable Stripping Machine
Product Quick Detail
- FOB Price
- USD $5,999.00 / Piece
- Minimum Order
- 1
- Place Of Origin
- China
- Packaging
- Plywood Box
- Delivery
- 3 Days subject to debugging time
Specifications
This H05VV-F jacket core stripper cutter automatically cut and strip outer jacket and pvc insulations of h05vv-f 2/3/4/5 core cable, not hurt core copper wires,100 different programs can be saved for calling anytime. Easy operation, unmanned and good performance.
Technical parameter：
Model：SWT508-YHT2
Machine dimension：700mm×660mm×430mm
Weight：85KG
Power：850W
Voltage：220V/110V 50/60HZ
Operation interface：English/Chinese（Using 7 Inch Touch Screen）
Processing outer diameter of round sheath line：3-10 mm
Machinable core number：2cores, 3cores, 4cores, 5 cores
Gas pressure：0.3-0.6Mpa
Maximum diameter of conduit：Diameter 11
Peeling accuracy：±0.2mm
Cutting length：Maximum 400m
Stripping length of outer line：20-150mm
Stripping length of core line:Front end 3-10MM，Rear end 3-30MM
Material of cutting tools：4 pieces of knife are made of high speed steel.
Productivity(200mm Length per unit)：650pcs/hour
Drive system：8 rollers Electric machinery ball screw driver
If your wire is flat sheathed cable, you can choose our fully automatic sheath cable wire stripping machine.
- Country: China (Mainland)
- Business Type: Shenzhen Fortune Sky Technology Co.,Ltd,Manufacturer,Trading Company
- Market:Americas,Africa,Asia,Emerging Markets,European Union,Middle East
- Founded Year:2008
- Address:No.2 Hongye North 7th Road, 138 Industrial Park, Tangxia Town, Dongguan City 523710
- Contact:Robin Chiu
