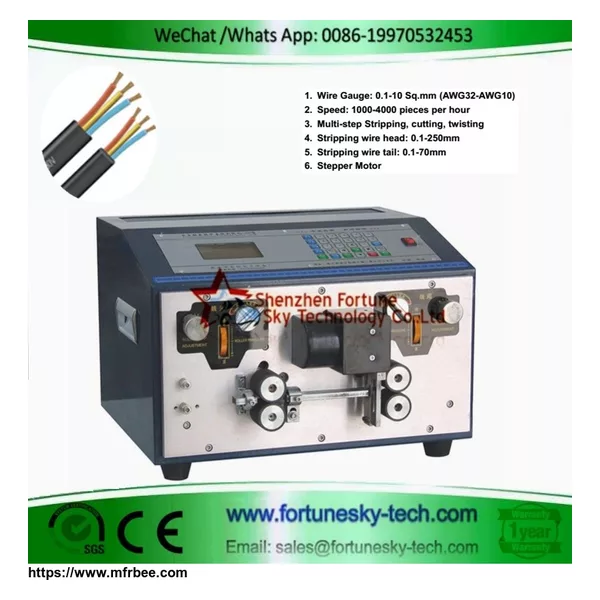

Fully Automatic NM Cable Wire Cutter And Stripping Machine

This fully automatic nm cablewire cutter and stripping machine on submersible pump cable uses hybrid drive, SMC pneumatic components, microcomputer full LCD control system, with a wheel function to improve the length and stability of the stripping length.

• ) nm cable: outer sheath and insulation of multi conductor cable can be one-time processing completed.
• ) power cord: outer sheath can be stripped only.

• Model No.	BJ-900
  Function	Wire cutting, both-ends stripping, middle stripping
  Applicable Wire Size	0.1-10 Sq.mm (AWG32-AWG10)
  Speed	1000-4000 pieces per hour (decided by wire)
  Wire Cutting	0.1-99999.9mm
  Stripping section	13
  Wire Stripping	Strip front: 0.1-250mm Strip tail:0.1-70mm
  Motor accuracy	0.1mm per step by mute stepper motor
  Function	Automatic wire inlet/outlet, timing start
  Driven Mode	4 wheels
  Machine Size	420(L)mmx297(w)mmx345(H)mm
  Net Weight	28KGS
  Cutter Material	Imported Tungsten Steel or High speed Steel
