Contrast Weaving
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Weaving: Contrast weaving
Features:Smooth mesh surface, high hardness, continuous mesh, no deformation, high temperature resistance, corrosion resistance, flexible mesh walking and so on Advantages,It has the characteristics of excellent filtration performance, good filtration accuracy, high load intensity, high temperature resistance, low temperature resistance and so on Characteristics.
Specifications:The general length is 10 meters long, the width is 40mm-210mm, the mesh number is 40 mesh -350 mesh, and the maximum width can reach 50 cm. Special specifications can be customized
Used:Apply to Austrian Lenzing Equipment And wire drawing machines in Germany, Japan and other countries,
Cast film machine,Filtration of film coating machine.Domestic equipment:Lanfei 90 plastic machine,changzhou Hengli plastic machine,yantai plastic machine,etc.,widely used in industries such as plastic woven bags, plastic films, aerospace, petroleum, chemical, chemical fiber, machinery, plastic products, scientific research and transportation. Automatic belt filter for plastic extruder, plastic melt filter, plastic machine belt filter. The products are exquisite in workmanship and are often exported to Southeast Asia, Britain, Germany, Japan, the United States, South Africa, Indonesia, Thailand and other countries and regions with filter equipment.

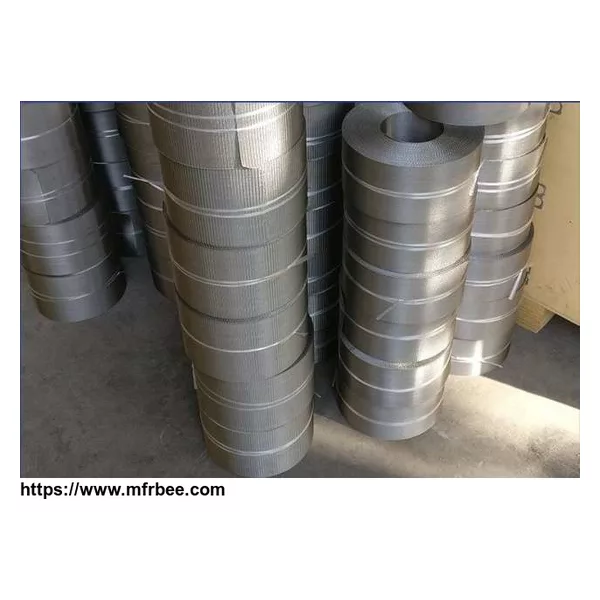

Belt automatic filter screen, also known as contrast net, contrast mat net belt (Dutch cloth)This product is made of high-quality, high-strength stainless steel wire, with advanced equipment and clear production process. It has the advantages of smooth mesh surface, high hardness, continuous mesh, no deformation, high temperature resistance, corrosion resistance, flexible mesh walking and so on, and has excellent filtration performance. Note: The general length is 10 meters long, the width is 40-210 mm, the mesh number is 40 -350 mesh, and the maximum width can reach 50 cm. Special specifications can be customized. Application: It is suitable for filtration of plastic wire drawing machine, film casting machine and film coating machine, such as plastic woven bag and plastic film, etc.
| Mesh Size | Wire diameter(um) | Micron Retention(um) | Prosity Theory (%) | Weight (kg/m2) | Cloth Thickness (mm) | ||
| Warp | Weft | Nominal | Absolute | | | | |
| 84×14 | - | - | - | 450-530 | 62 | 3.5 | 1.15 |
| 260×40 | - | - | 125 | 112-125 | 54 | 2.25 | 0.62 |
| 170×40 | - | - | 90 | 106-118 | 54 | 2.1 | 0.57 |
| 175×37 | - | - | 85 | 100-106 | 54 | 2.1 | 0.57 |
| 130×30-35 | 200 | 380 | 80 | 95-105 | 57 | 2.7-3.10 | .77-.80 |
| 175×40-50 | 150 | 300 | 60 | 65-72 | 55 | 2.1-2.40 | .57-.60 |
| 280×60-70 | 90 | 200 | 40 | 54-60 | 56 | 1.34-1.55 | .38-.40 |
| 600×100-105 | 42 | 140 | 25 | 34-38 | 57 | .75-.80 | .22-.23 |
| 630×125-130 | 42 | 125 | 17 | 22-26 | 53 | .75-.85 | .20-.22 |
| 720×140-150 | 35 | 110 | 15 | 16-20 | 52 | .65-.70 | .15-.18 |
- Country: China (Mainland)
- Business Type:
- Market:USA, Canada, South Africa, Saudi Arabia, Turkey
- Founded Year:2008
- Address:NO.266 INDUSTRY PARK OF ANPING COUNTY HEBEI PROVINCE CHINA
- Contact:xiaozhong Geng
